“ZL系列旋转造粒机”是一种多功能机器，专为制药、食品和化工等各种行业设计。它的主要用途是将搅拌好的原料粒化成所需的颗粒，特别适用于高粘度的物料。它特别适合在小鸡味精厂使用。
ZL系列旋转式颗粒机
Transform materials into uniform granules effortlessly with our high-performance granulating machine.
ZL系列旋转式颗粒机
Transform materials into uniform granules effortlessly with our high-performance granulating machine.
描述

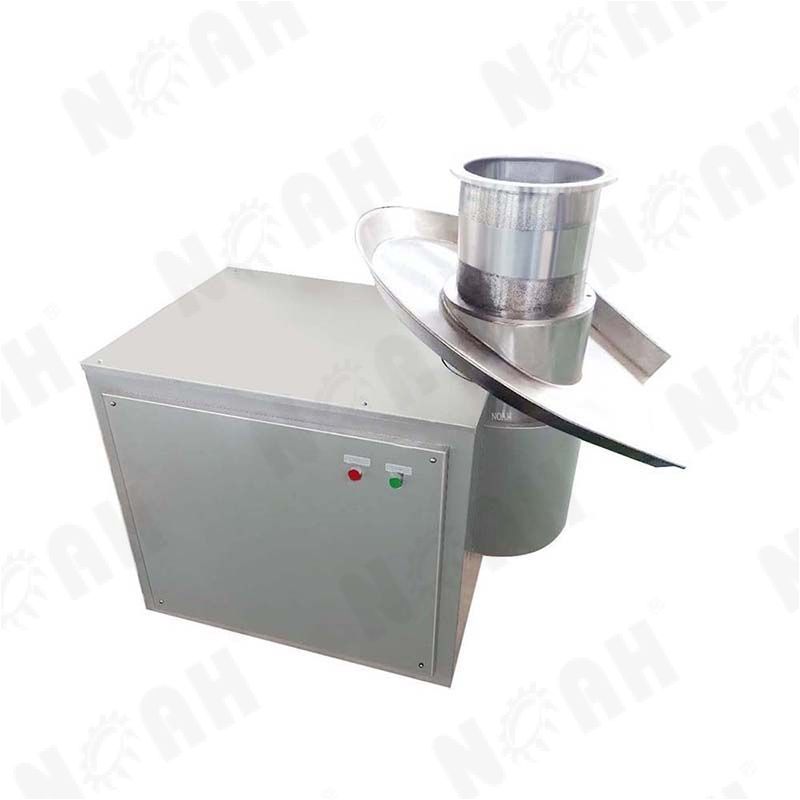

ZL系列旋转式颗粒机
“ZL系列旋转造粒机”是一种多功能机器，专为制药、食品和化工等各种行业设计。它的主要用途是将搅拌好的原料粒化成所需的颗粒，特别适用于高粘度的物料。它特别适合在小鸡味精厂使用。
特点
旋转研磨刀片:该机利用一对旋转研磨刀片将潮湿物料高效研磨成柱状颗粒。

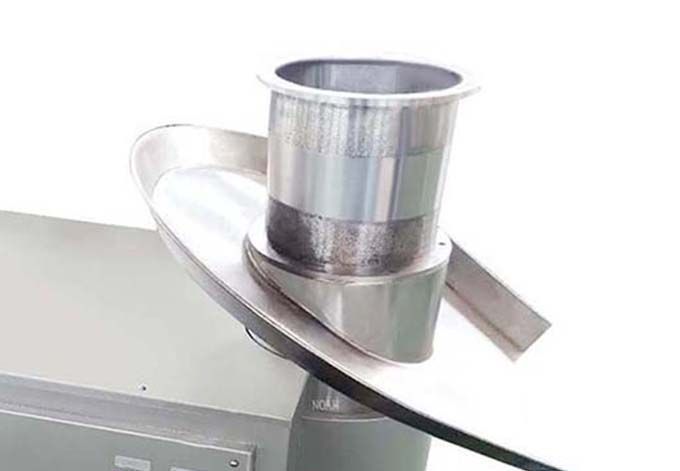

不锈钢筛筒:颗粒是通过将研磨后的材料通过不锈钢筛筒形成的，这有助于制粒过程。
颗粒大小可调:通过更换不锈钢筛网，机器可以根据需要生产不同大小的颗粒。
不锈钢结构:所有与原材料接触的部件均由不锈钢制成，确保卫生和耐用。
自动卸料:该机器具有自动卸料系统，无需人工操作，降低了颗粒损坏的风险。
ZL系列旋转造粒机通过使用一对旋转研磨刀片来有效研磨潮湿材料。然后将这些材料通过不锈钢筛筒，形成柱状颗粒。该机器的不锈钢结构不仅确保了卫生，还增加了其美学吸引力。
本机是通过一组旋转碾刀，将前道工序制成的湿材注入环碾刀的不锈钢筛筒筛孔中，从而制成圆柱状的湿颗粒，供下道工抛丸使用。
本设备可通过更换不锈钢筛筒来取得不同大小的颗粒。制湿颗粒也可根据物料和所需球形颗粒的大小。

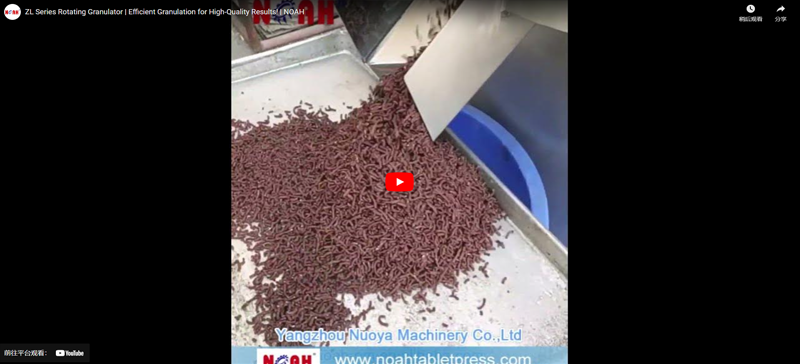

ZL系列旋转式颗粒机视频

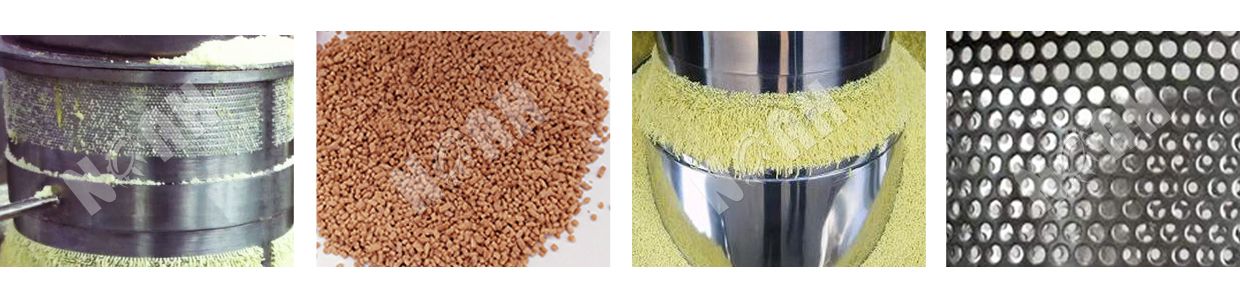

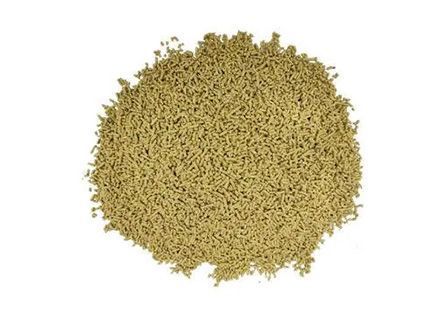

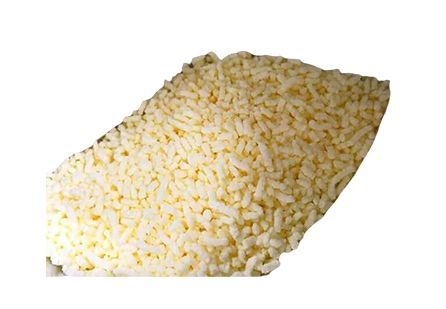

成品展示
参数
| 型号Model | ZL250 | ZL300B | ZL300D |
| 筛筒直径 Strainer diameter | Φ250 mm | Φ300 mm | Φ300 mm |
| 筛筒孔径 Strainer aperture | Φ0.8-2.5 mm | 0.8-3mm | Φ0.8-2.5 mm |
| 生产能力 Production capacity | 60-200 kg/h | 140-400kg/h | 300-600 kg/h |
| 碾力速度 Rotation rate of rolling knives | 60 r/min | 70r/min | 80 r/min |
| 电机功率 Motor | 3 kw | 4Kw | 7.5 kw |
| 尺寸Overall size | 700*500*1450 mm | 880*640*1300mm | 1300*800*1200 mm |
| 重量Net weight | 350 kg | 400kg | 780 kg |
问题FAQ - Have any questions?
What is the ZL Series Rotating Granulator used for?
The ZL Series Rotating Granulator is used for granulating and shaping various materials in industries such as pharmaceuticals, chemicals, and food processing.
How does the ZL Series Rotating Granulator work?
The ZL Series Rotating Granulator operates by rotating a cylindrical sieve drum, which forces the material through the sieve, resulting in granules of the desired size.
What are the key features of the ZL Series Rotating Granulator?
The key features of the ZL Series Rotating Granulator include a rotating drum, adjustable processing parameters, high efficiency, easy operation and maintenance, and the ability to produce uniform granules.
What types of materials can be processed with the ZL Series Rotating Granulator?
The ZL Series Rotating Granulator can process a wide range of materials, including powders, granules, and solid particles in industries such as pharmaceuticals, chemicals, and food processing.
What is the advantage of using a rotating granulator over other granulation methods?
The advantage of using a rotating granulator like the ZL Series is its ability to produce uniform and consistent granules with controlled particle size and shape, resulting in improved flowability and compressibility.
Can the ZL Series Rotating Granulator handle heat-sensitive materials?
Yes, the ZL Series Rotating Granulator can handle heat-sensitive materials due to its gentle and controlled granulation process, minimizing heat generation.
What is the capacity range of the ZL Series Rotating Granulator?
The capacity of the ZL Series Rotating Granulator varies depending on the model and specific application, ranging from small-scale laboratory units to large-scale production systems.
Is the ZL Series Rotating Granulator suitable for continuous or batch operation?
The ZL Series Rotating Granulator can be used for both continuous and batch operation, providing flexibility to match different production requirements.
Can the granule size be adjusted with the ZL Series Rotating Granulator?
Yes, the ZL Series Rotating Granulator allows for adjustable processing parameters such as drum speed, sieve size, and feed rate, enabling control over the granule size and shape.
Is the ZL Series Rotating Granulator easy to clean and maintain?
Yes, the ZL Series Rotating Granulator is designed for easy cleaning and maintenance. It features a user-friendly design with accessible parts, facilitating efficient cleaning and routine maintenance tasks.
