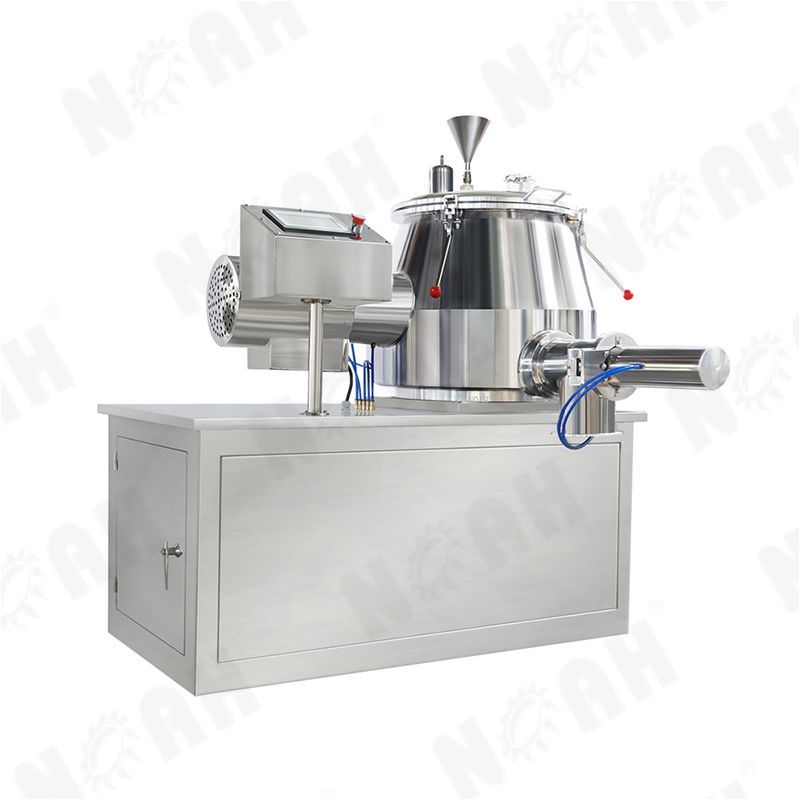

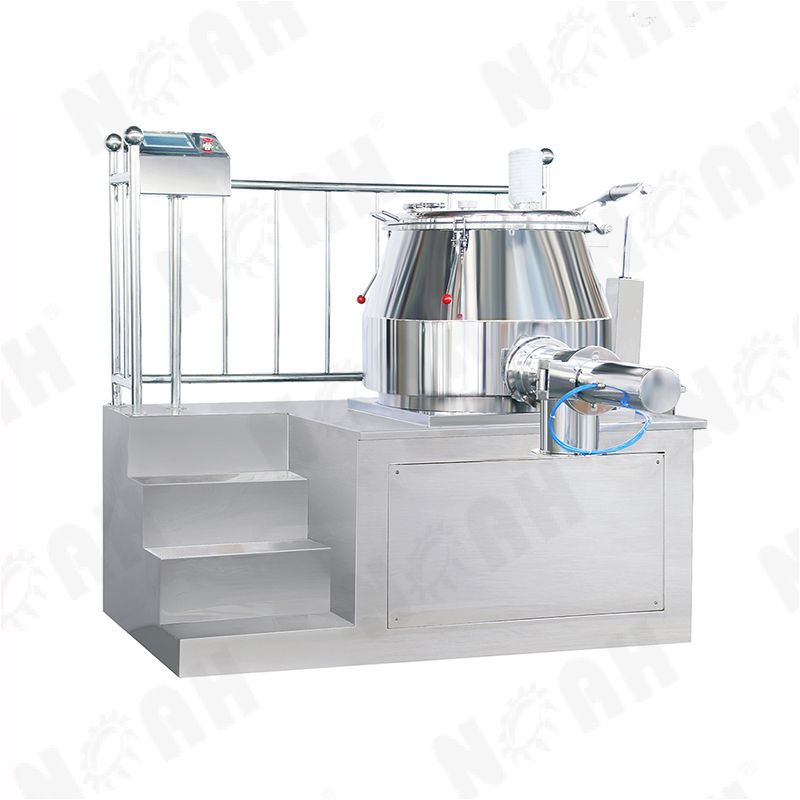

Wet Granulation Machine | HLSG Series High Speed Wet Mixing Granulator

描述

▲ 主要用途

适用于制药行业生产片剂、胶囊，可为压片、胶囊工序提供理想的颗粒状。

▲ 主要特点

◇ 用本设备制造的颗粒，真球度高，流动性好，质地均匀，可有效地提高压片效率、压片质量及胶囊填充，使药片具有更好的光度、硬度、崩解度和释放度，并节约生产成本。

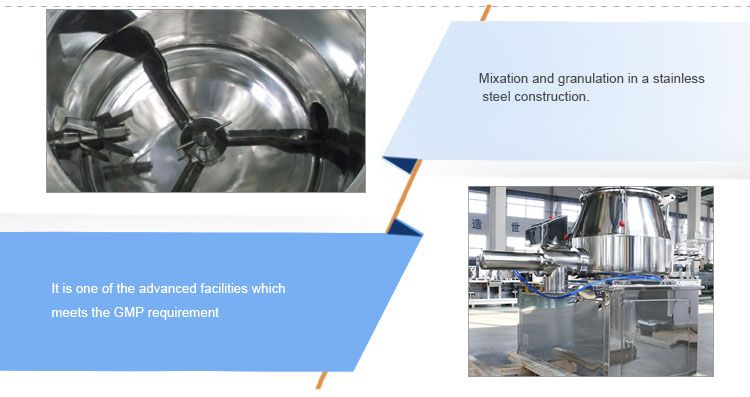

◇ 与物料接触部分采用不锈钢316L，外观部分采用不锈钢304材料。

◇ 制造精良，清洁方便，有自动水清洗系统，无金属死角，不积料，是理想的湿法造粒设备。

◇ 根据中西药的性能，把湿法混合制粒机分为中药型和西药型。

◇ 可根据用户需求，配置人机界面/PLC控制，或采用隔爆。

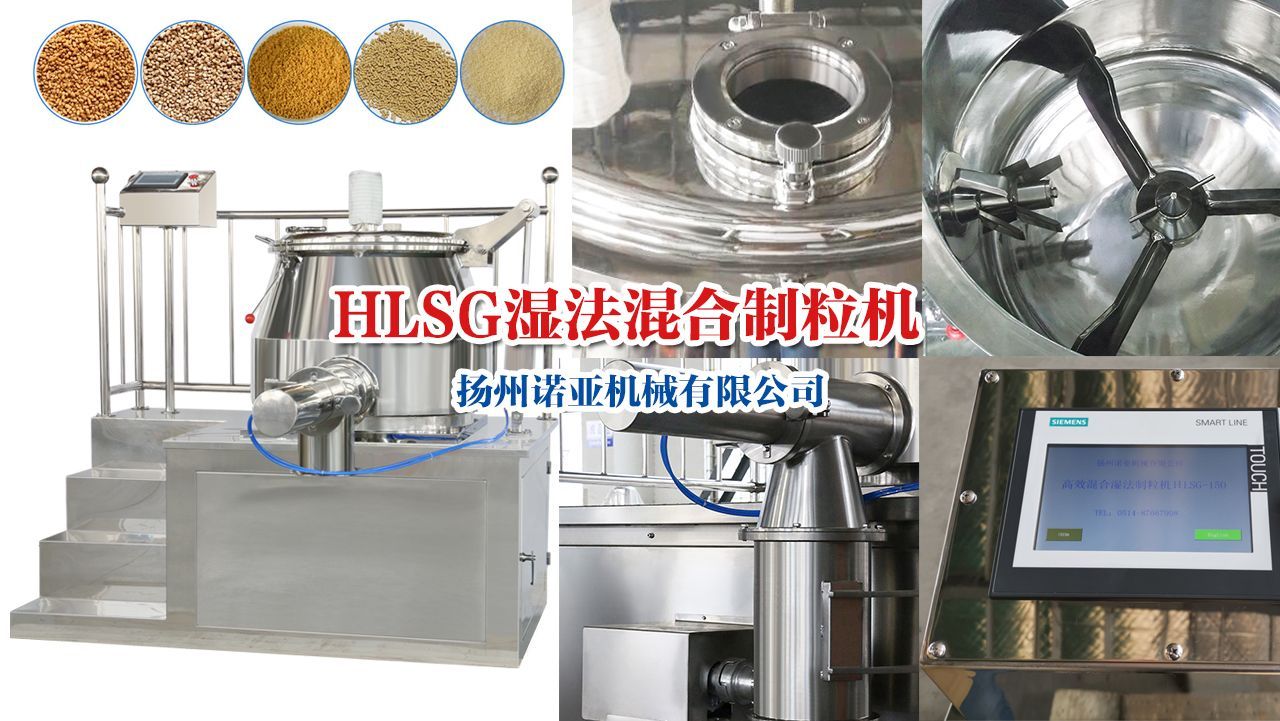

HLSG湿法混合制粒机视频

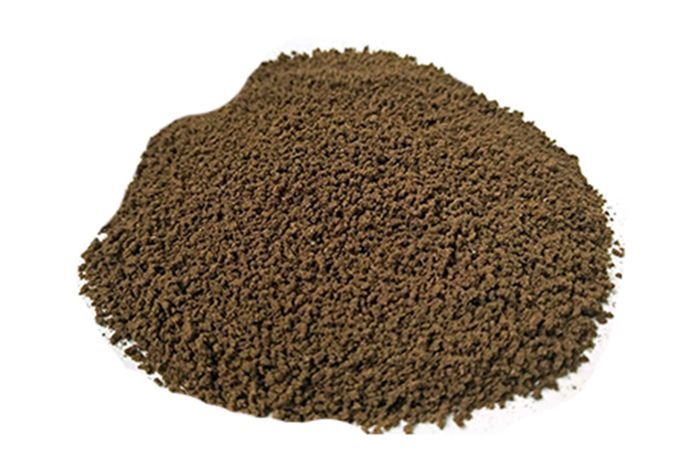

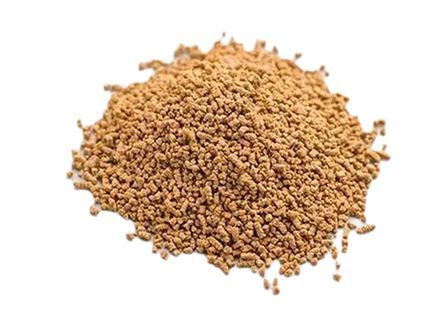

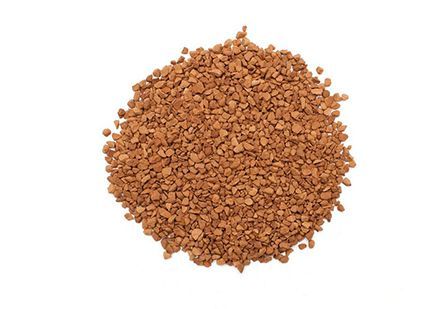

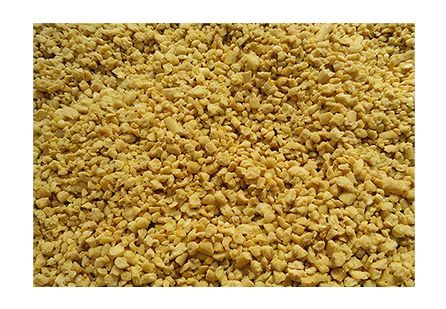

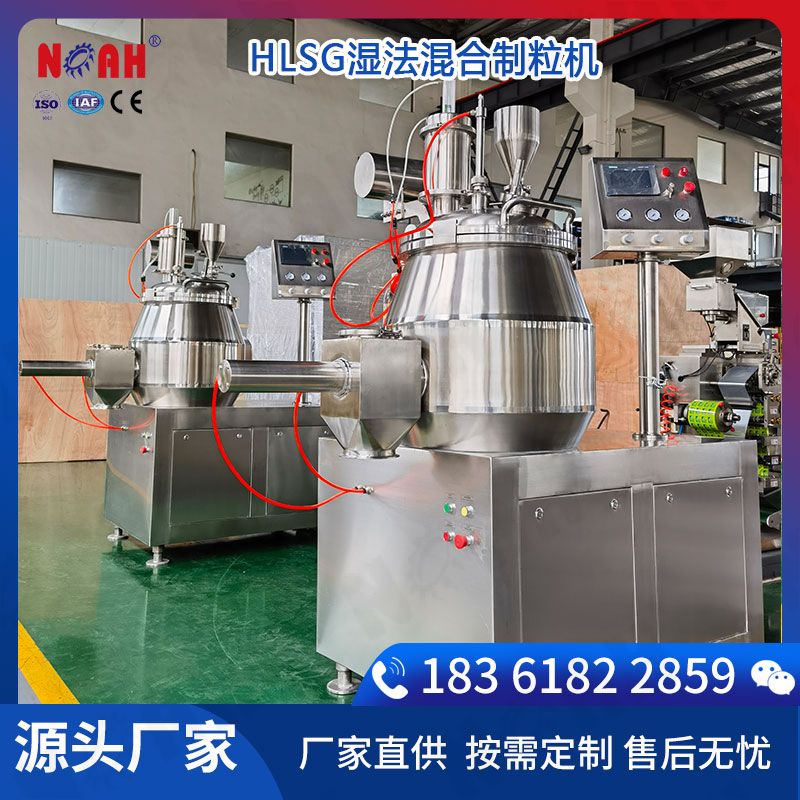

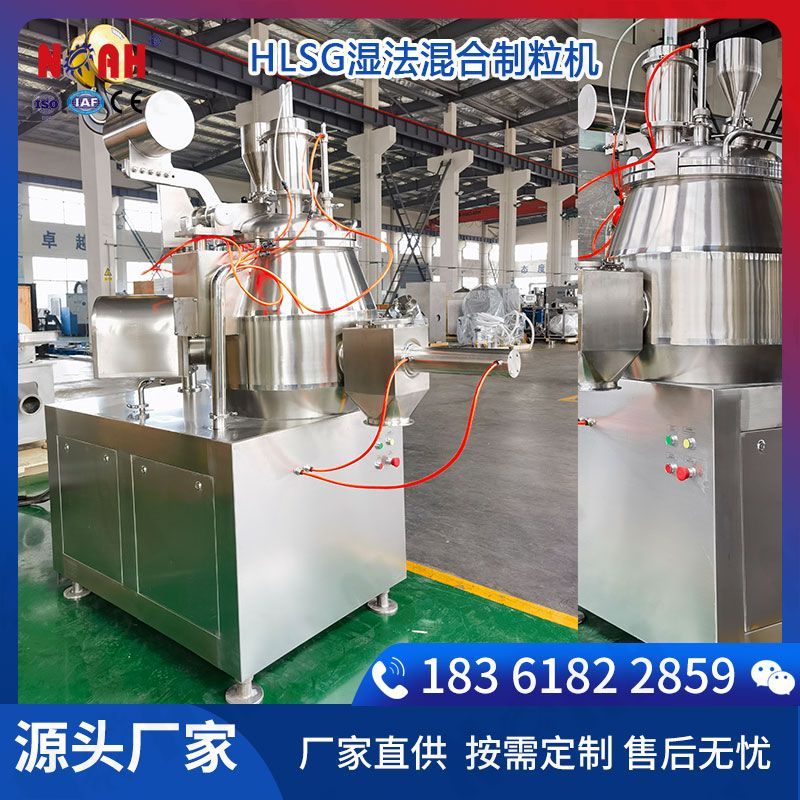

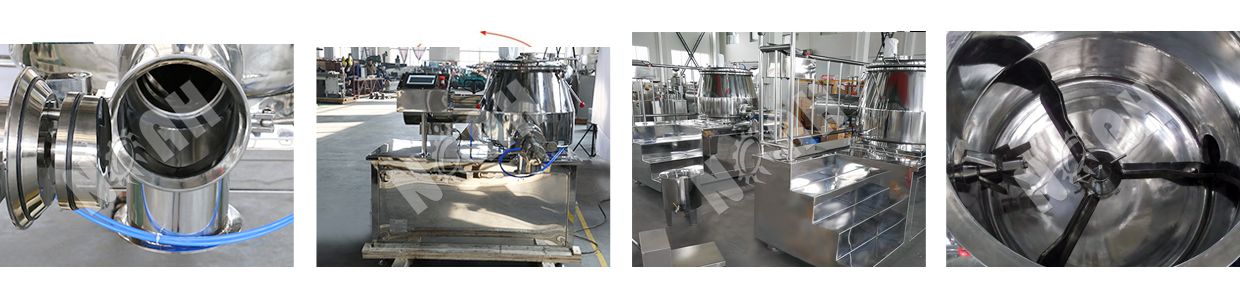

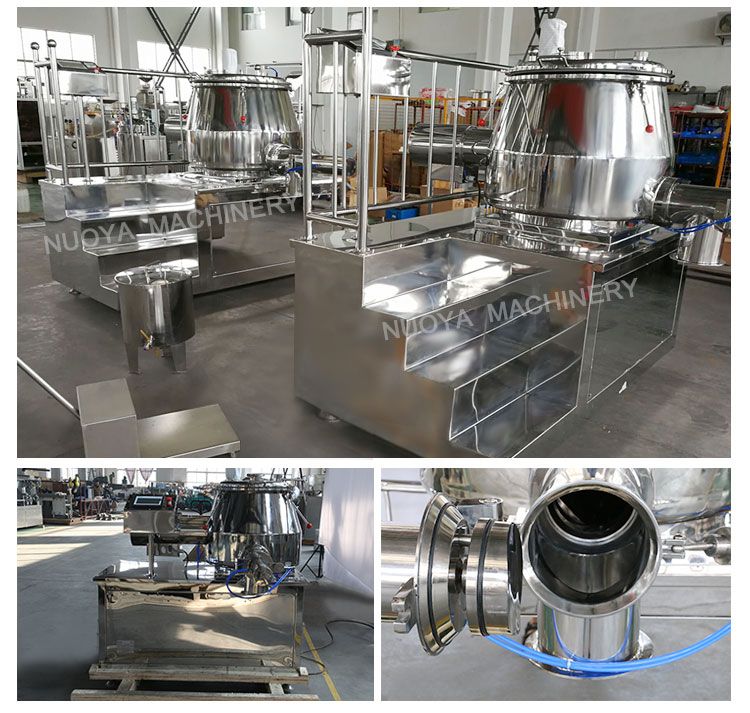

成品展示

参数

型号Model number	HLSG-10	HLSG-50	HLSG-100	HLSG-150	HLSG-200	HLSG-300
容量Bowl Volume Litre L	10	50	100	150	200	300
产量Output kg	3	15	40	50	80	100-130
功率Power kw	2.2	5.5	7.5	9	11	13
速度Speed r/min	300/600	300/210	270/180	270/180	270/180	160/110
尺寸Size mm	9804201250	16006501300	17006801300	18508301340	19509201450	220010001685
重量Net weight kg	200	300	500	600	850	1200

问题FAQ - Have any questions?

联系我们

What is the HLSG Series High Speed Wet Mixing Granulator used for?

The HLSG Series High Speed Wet Mixing Granulator is used for wet granulation processes in the pharmaceutical, chemical, and food industries.

How does the HLSG Series High Speed Wet Mixing Granulator work?

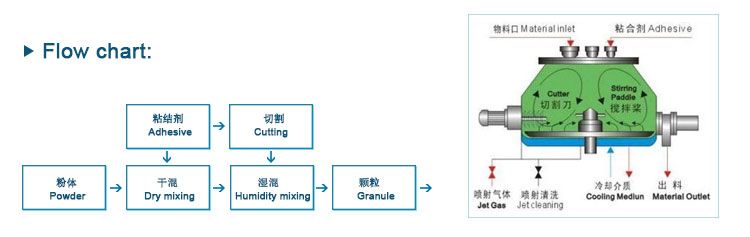

The HLSG Series High Speed Wet Mixing Granulator utilizes high-speed agitation and liquid binding agents to transform powder materials into uniform and granulated particles.

What are the key features of the HLSG Series High Speed Wet Mixing Granulator?

The key features of the HLSG Series High Speed Wet Mixing Granulator include high-speed mixing, efficient wet granulation, adjustable process parameters, precise control, and easy cleaning and maintenance.

What types of materials can be processed with the HLSG Series High Speed Wet Mixing Granulator?

The HLSG Series High Speed Wet Mixing Granulator can process various materials such as powders, granules, and solid particles in industries like pharmaceuticals, chemicals, and foods.

What is the advantage of wet granulation over other granulation methods?

Wet granulation offers advantages such as improved material flow, better control over particle size distribution, enhanced homogeneity, increased density, and improved compressibility of granules.

Can the HLSG Series High Speed Wet Mixing Granulator handle heat-sensitive materials?

Yes, the HLSG Series High Speed Wet Mixing Granulator is designed to handle heat-sensitive materials by utilizing controlled and optimized process parameters to minimize heat generation.

What is the capacity range of the HLSG Series High Speed Wet Mixing Granulator?

The capacity of the HLSG Series High Speed Wet Mixing Granulator can vary depending on the model and specific application, ranging from a few kilograms to several hundred kilograms per batch.

Is the HLSG Series High Speed Wet Mixing Granulator compliant with industry regulations and standards?

Yes, the HLSG Series High Speed Wet Mixing Granulator is designed and manufactured in compliance with relevant industry regulations and standards, ensuring its suitability for pharmaceutical and food applications.

Can the process parameters of the HLSG Series High Speed Wet Mixing Granulator be adjusted?

Yes, the HLSG Series High Speed Wet Mixing Granulator allows for precise control and adjustment of process parameters such as mixing speed, granulation time, and liquid binder addition, enabling customization and optimization of the granulation process.

Is the HLSG Series High Speed Wet Mixing Granulator equipped with safety features?

Yes, the HLSG Series High Speed Wet Mixing Granulator is equipped with various safety features such as emergency stop buttons, overload protection, and interlock systems to ensure operator safety during operation.

详情

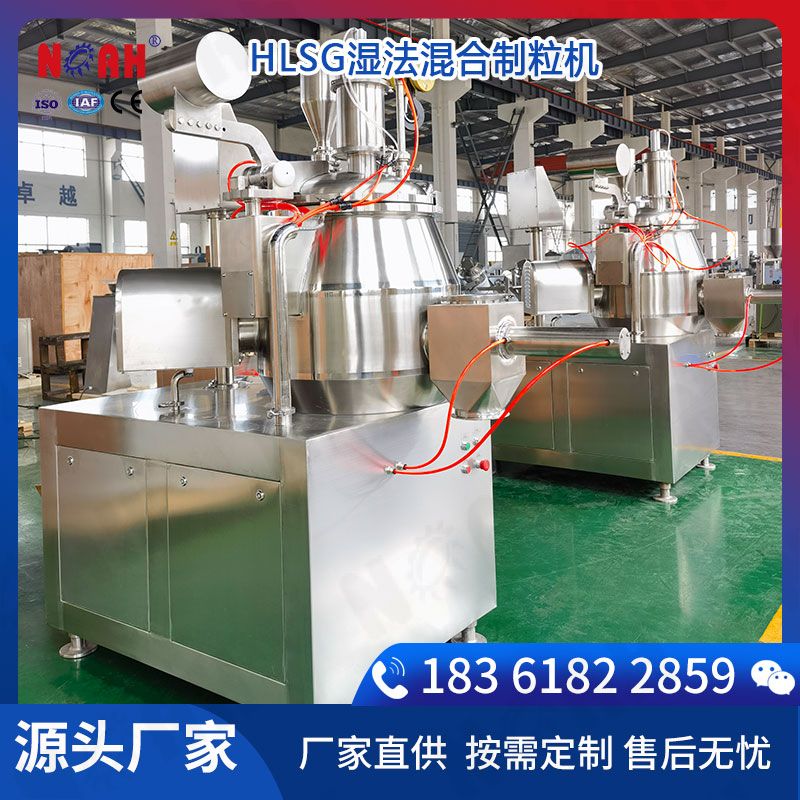

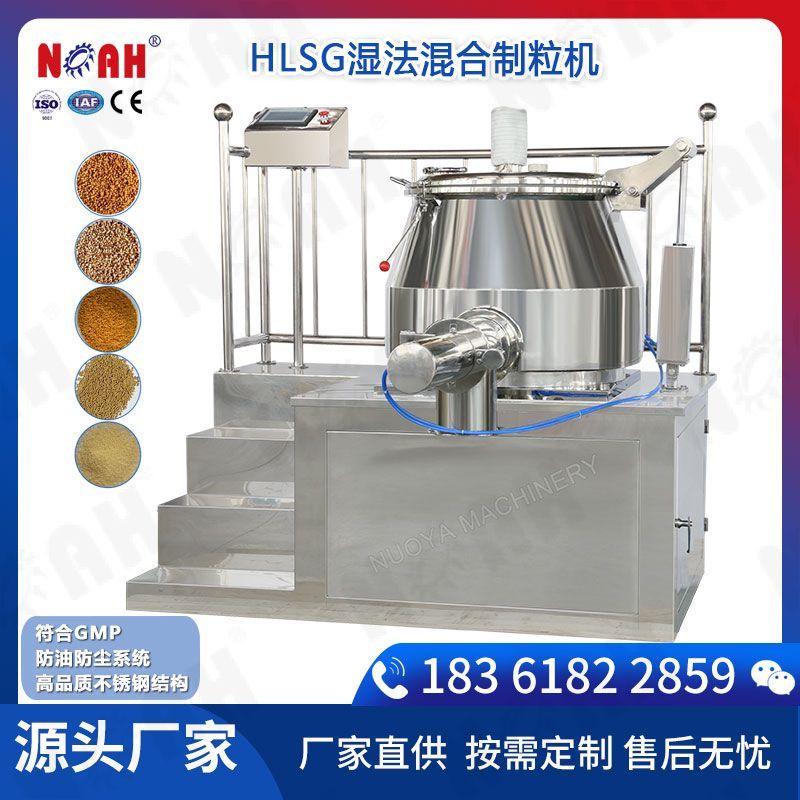

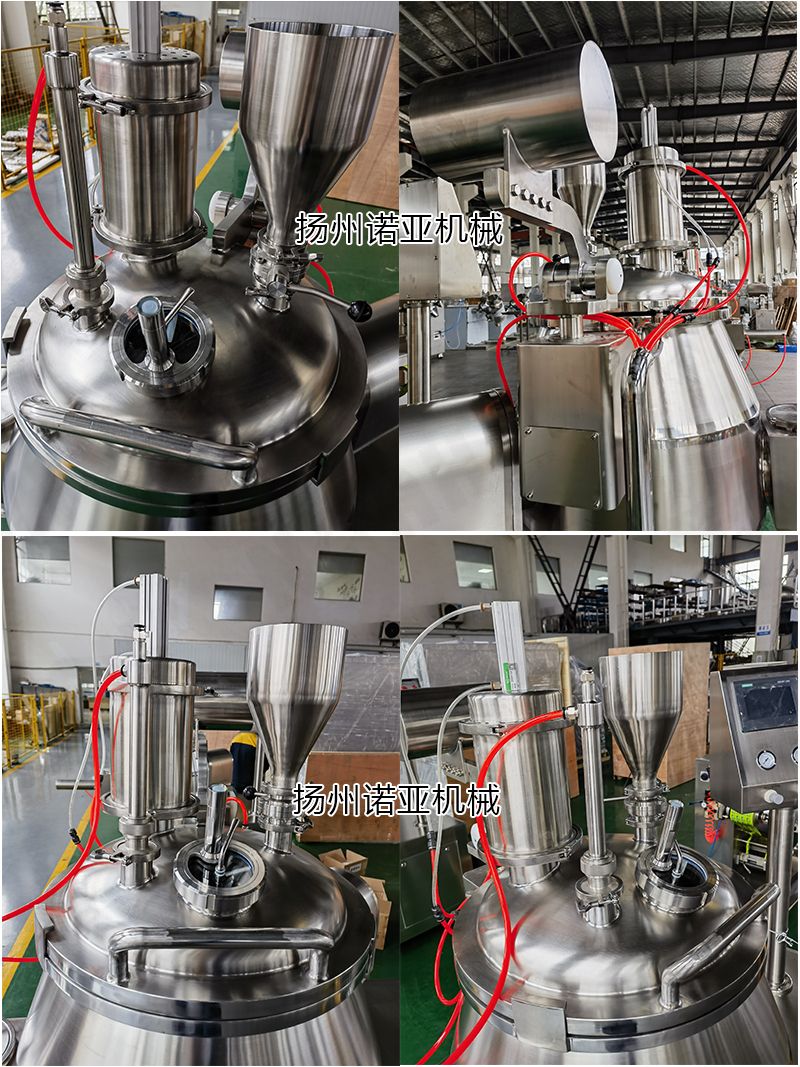

HLSG湿法混合制粒机
