该机适用于需要利用原料中自带的结晶水进行直接干挤出和颗粒成型的场合。它在制药、化工和食品生产中得到应用。
适用于制药、化工、食品等行业，利用原材料本身的结晶水直接干挤压而成颗粒的场合。

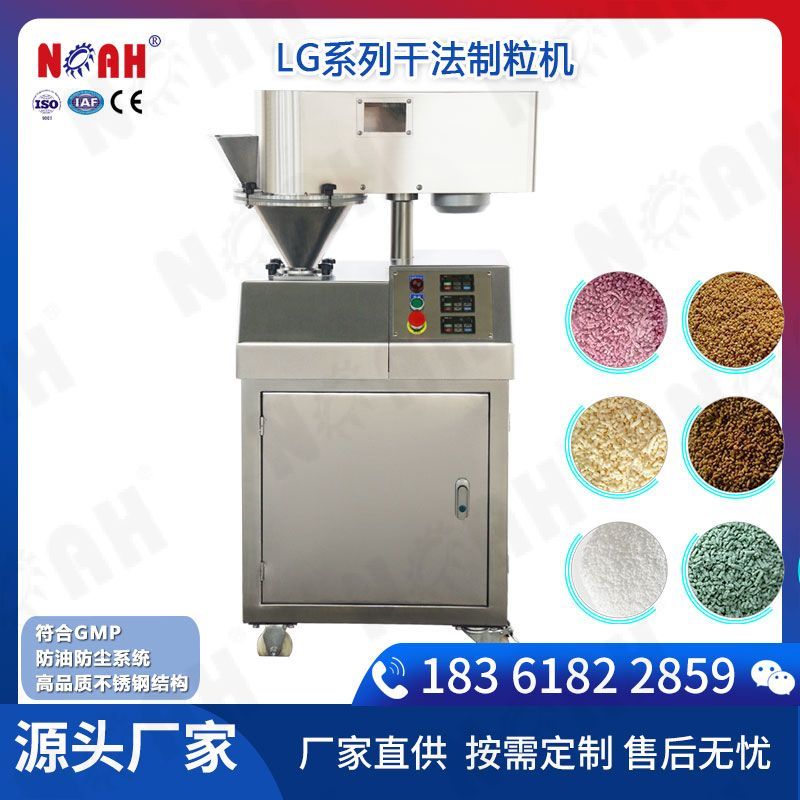

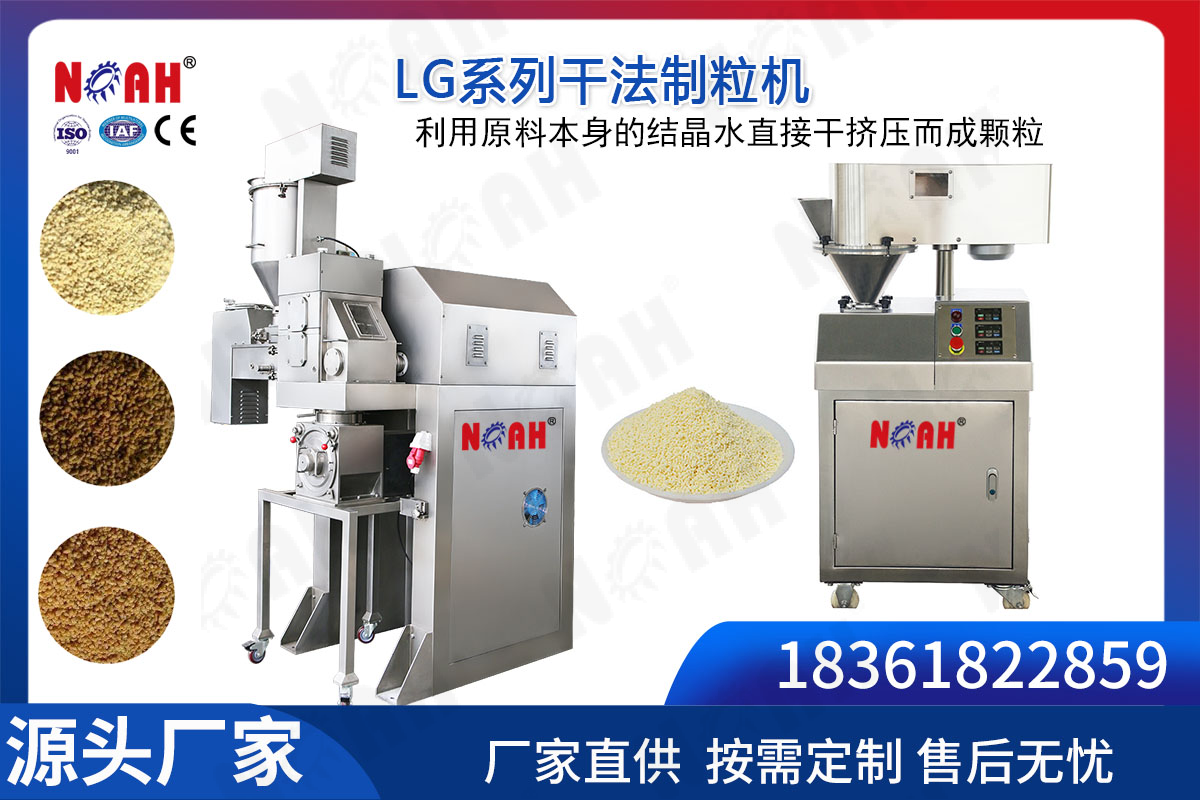

LG系列干法造粒机
Transform materials into uniform granules effortlessly with our high-performance granulating machine.
将配制好的，具有结晶水的粉料装入料斗，通过送料螺杆的输送 和压缩（粉料的密度成倍的增加）被推送到两挤压轮上部，这时粉料处于五面受压的条件下，随着挤压辊轮的转动，粉料被送向两挤压辊轮之间的空隙进行强烈的挤压 成为硬条片,硬条片经过整粒系统破碎整粒成理想的颗粒。整个过程是自动进行的。
描述
LG系列干法造粒机
该机适用于需要利用原料中自带的结晶水进行直接干挤出和颗粒成型的场合。它在制药、化工和食品生产中得到应用。
适用于制药、化工、食品等行业，利用原材料本身的结晶水直接干挤压而成颗粒的场合。
特点
1. 挤压所产生的热量通过制冷机冷却。
2. 挤压辊轮表面经设计加工，防粉末粘结。侧密封结构以及合理的刮料板结构,能较好的解决辊轮侧细粉现象。
3. 挤压破碎整粒系统采用破碎系统加上两对滚筒造粒机构，使送料与出料相协调，并形成所需的颗粒。系统密闭在不锈钢罩壳里，使操作室内无粉尘飞扬。
4. 异形不等距螺杆根据不同的物料需求，配制尼龙螺杆或不锈钢螺杆。
5. 主轴轴承采用油润滑，代替通常的油脂润滑，使得本机在免拆装的情况下加油润滑。
6. 合理的机罩结构使得拆装快捷方便，便于机体内部的清洗，符合GMP验证要求。
LG系列干式造粒机利用原料中自带的结晶水，利用直接干式挤出和颗粒成型的原理。该机器具有冷却系统，可有效冷却挤压热量。其特殊设计的挤压辊表面可防止结块，而侧密封结构和刮刀杆可有效消除细粉堆积。破碎和制粒系统以及密封的不锈钢外壳确保生产理想的谷物，同时最大限度地减少操作室内的灰尘。机器根据具体的材料要求提供不同螺杆材料的选项。轴承采用油润滑，无需频繁组装和拆卸。便利的外壳结构便于维护和内部清洁，符合GMP验证要求。
成品展示
参数
| 型号Model | LG25 | LG-50 | LG-100 |
| 压辊尺寸(Roller size（mm） | Φ80×25 | Φ150×50 | Φ200×100 |
| 产量Output（kg/h） | 1～5 | 10～40 | 30～100 |
| 压轮转速 Roller speed（rpm） | 0～18 | 0～33 | 0～33 |
| 螺杆转速 Screw speed（rpm） | 0～60 | ||
| 造粒转速Granulating speed（rpm） | 0～600 | 0～377 | 0～268 |
| 成品粒度Fineness（mm） | 0.8～1.5 | ||
| 压轮压力( Roller Pressure（MPa） | 0～7 | 0～7 | 0～7 |
| 功率Total power（KW） | 2.63 | 5.62 | 11.15 |
| 尺寸Dimension（mm） | 750×650×1350 | 1020×800×700 | 1500×1050×2050 |
| 重量Weight（kg） | 200 | 1000 | 2500 |
问题FAQ - Have any questions?
What is the LG Series Dry Pelletizer/LG Series Dry Granulator used for?
The LG Series Dry Pelletizer/LG Series Dry Granulator is used for dry granulation and pelletization of various materials in industries such as pharmaceuticals, chemicals, and food processing.
How does the LG Series Dry Pelletizer/LG Series Dry Granulator work?
The LG Series Dry Pelletizer/LG Series Dry Granulator operates by compressing dry powder or granules between two rotating rolls, resulting in the formation of compacted granules or pellets.
What are the key features of the LG Series Dry Pelletizer/LG Series Dry Granulator?
The key features of the LG Series Dry Pelletizer/LG Series Dry Granulator include twin roller compaction, adjustable processing parameters, high compaction force, precise control over granule size, and the ability to produce uniform and dense granules.
What types of materials can be processed with the LG Series Dry Pelletizer/LG Series Dry Granulator?
The LG Series Dry Pelletizer/LG Series Dry Granulator can process a wide range of materials, including powders, granules, and solid particles in industries such as pharmaceuticals, chemicals, and food processing.
What is the advantage of using a dry pelletizer/granulator over other granulation methods?
The advantage of using a dry pelletizer/granulator like the LG Series is its ability to produce granules or pellets without the need for liquid binders or solvents, resulting in reduced drying time and improved stability of the final product.
Can the LG Series Dry Pelletizer/LG Series Dry Granulator handle heat-sensitive materials?
Yes, the LG Series Dry Pelletizer/LG Series Dry Granulator can handle heat-sensitive materials due to its gentle and controlled compaction process, minimizing heat generation.
What is the capacity range of the LG Series Dry Pelletizer/LG Series Dry Granulator?
The capacity of the LG Series Dry Pelletizer/LG Series Dry Granulator varies depending on the model and specific application, ranging from small-scale laboratory units to large-scale production systems.
Is the LG Series Dry Pelletizer/LG Series Dry Granulator suitable for continuous or batch operation?
The LG Series Dry Pelletizer/LG Series Dry Granulator can be used for both continuous and batch operation, providing flexibility to match different production requirements.
Can the granule size be adjusted with the LG Series Dry Pelletizer/LG Series Dry Granulator?
Yes, the LG Series Dry Pelletizer/LG Series Dry Granulator allows for adjustable processing parameters such as roll speed, roll gap, and feed rate, enabling control over the granule size and density.
Is the LG Series Dry Pelletizer/LG Series Dry Granulator easy to clean and maintain?
Yes, the LG Series Dry Pelletizer/LG Series Dry Granulator is designed for easy cleaning and maintenance. It features a user-friendly design with accessible parts, facilitating efficient cleaning and routine maintenance tasks.
