GTM系列全陶瓷扁平气流磨广泛应用于各种行业，包括高科技陶瓷、锂电池材料、精细化学品、食品和药品、颜料涂料等。它特别适用于破碎硬度低于7且粒度分布要求较宽的物料。它擅长处理超细粉末，热敏材料，以及那些具有粘附性能。

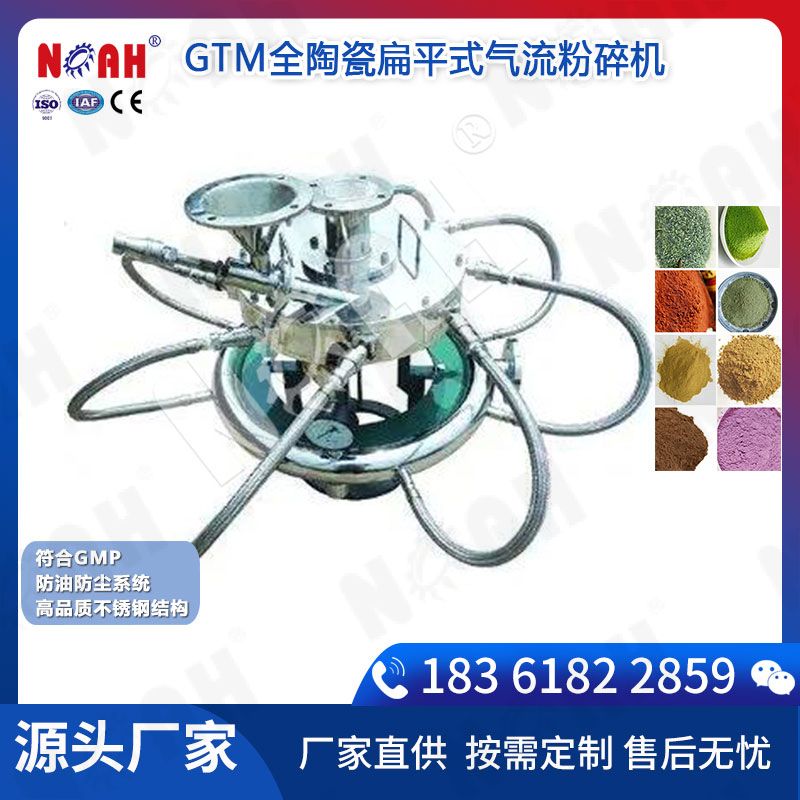

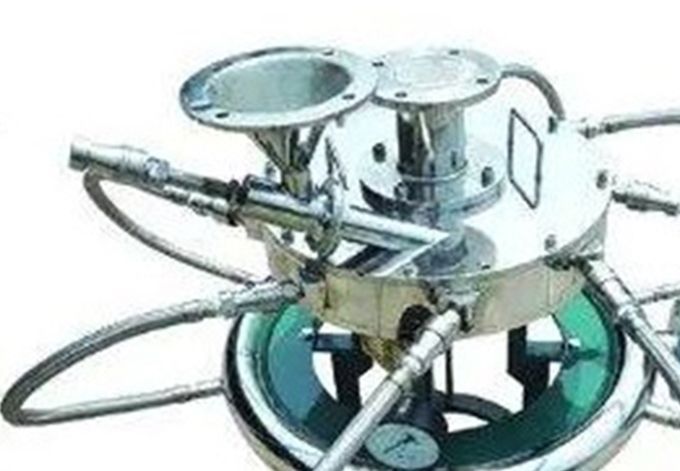

GTM系列全陶瓷扁平式气流粉碎机
Efficient and precise pulverization for enhanced material processing and production with our advanced pulverizer machine.
GTM系列全陶瓷扁平式气流粉碎机
Efficient and precise pulverization for enhanced material processing and production with our advanced pulverizer machine.
Strong impact crushing with versatile applications.
Wear-resistant ceramic protection against contamination.
Precise particle size distribution for fine materials.
Optional classifier for particle removal.
Simple structure for easy operation and maintenance.
Integration with automated production lines.
Dust-free operation for environmental friendliness.
Reduces labor intensity with intelligent control.
描述
GTM系列全陶瓷扁平式气流粉碎机
GTM系列全陶瓷扁平气流磨广泛应用于各种行业，包括高科技陶瓷、锂电池材料、精细化学品、食品和药品、颜料涂料等。它特别适用于破碎硬度低于7且粒度分布要求较宽的物料。它擅长处理超细粉末，热敏材料，以及那些具有粘附性能。
特点
整合了“碰撞”、“摩擦”和“剪切”粉碎原理，以实现强大的冲击力。
与材料接触区域的耐磨陶瓷保护，防止金属杂质污染。
适用于多种材料，包括高科技陶瓷、锂电池材料、精细化学品等。
可选的后涡轮分级机，可根据客户需求去除大颗粒。
内部结构简单，操作容易，拆装方便。
与自动化生产线集成，实现无尘环保操作。
降低劳动强度并提供智能在线和远程控制功能。
GTM系列全陶瓷扁平气流磨利用高压工作介质产生高速气流，加速粉碎室内的原料。它结合了“碰撞”、“摩擦”和“剪切”原理来产生强烈的冲击。该机器在接触区域采用耐磨陶瓷保护，以防止金属杂质污染。它适用于各种行业，包括高科技陶瓷、锂电池材料和精细化学品。该研磨机可以实现精确的粒度分布，并且能够处理超细粉末和热敏材料。它具有简单的内部结构，易于操作，并可以集成到自动化生产线的无尘和环保的操作。该工厂降低了劳动强度，并提供智能在线和远程控制能力。
Finished Product Display
参数
| Specification model | GTM-50 Micro type/Lab-scale | GTM-100 | GTM-200 | GTM-320 | GTM-400 | GTM-600 | GTM-700 | GTM-800 |
| Gas consumption(m³/min) | 0.6 | 1.5 | 3 | 6 | 10 | 20 | 30 | 40 |
| Crushing pressure(Mpa) | 0.4～1.2 | 0.4～1.2 | 0.4～1.2 | 0.4～1.2 | 0.4～1.2 | 0.4～1.2 | 0.4～1.2 | 0.4～1.2 |
| Feeding size(Mesh) | 60～325 | 60～325 | 60～325 | 60～325 | 60～325 | 60～325 | 60～325 | 60～325 |
| Outlet particle size(D50,μm) | 0.5～30 | 0.5～30 | 0.5～30 | 0.5～30 | 0.5～30 | 0.5～30 | 0.5～30 | 0.5～30 |
| Processing capacity (kg/h) | 0.05～1 | 1～15 | 3～40 | 10～100 | 20～200 | 50～500 | 80～800 | 150～1500 |
| Air compressor power(kW) | 5.5～7.5 | 11～15 | 22～30 | 45～55 | 75～90 | 132～160 | 200～250 | 250～300 |
FAQ - Have any questions?
What is the GTM Series · All Ceramics Flat Jet Mill?
The GTM Series · All Ceramics Flat Jet Mill is a specialized machine used for ultra-fine grinding and pulverization of various materials using flat ceramic nozzles.
How does the GTM Series · All Ceramics Flat Jet Mill work?
The GTM Series · All Ceramics Flat Jet Mill uses high-speed compressed air to create a supersonic jet stream that accelerates the particles. The particles then collide with each other or the flat ceramic nozzles, resulting in ultra-fine grinding and pulverization.
What are the advantages of the all-ceramic construction of the GTM Series · All Ceramics Flat Jet Mill?
The all-ceramic construction of the GTM Series · All Ceramics Flat Jet Mill ensures low contamination and high purity of the ground materials. It is particularly suitable for applications that require exceptional cleanliness and minimal impurities.
Can the GTM Series · All Ceramics Flat Jet Mill achieve precise particle size control?
Yes, the GTM Series · All Ceramics Flat Jet Mill offers precise particle size control. The adjustable operating parameters, such as gas pressure, feed rate, and classifier speed, allow users to achieve the desired particle size distribution for their specific application requirements.
What materials can be processed using the GTM Series · All Ceramics Flat Jet Mill?
The GTM Series · All Ceramics Flat Jet Mill can process a wide range of materials, including powders, granules, and crystalline substances, such as pharmaceuticals, chemicals, minerals, and advanced ceramics.
Does the GTM Series · All Ceramics Flat Jet Mill generate heat during operation?
The GTM Series · All Ceramics Flat Jet Mill generates minimal heat during operation due to its efficient grinding mechanism. This feature is beneficial for heat-sensitive materials that require a low-temperature grinding process.
Is the GTM Series · All Ceramics Flat Jet Mill suitable for continuous operation?
Yes, the GTM Series · All Ceramics Flat Jet Mill is designed for continuous operation, allowing for high production efficiency and uninterrupted processing of materials.
How does the GTM Series · All Ceramics Flat Jet Mill ensure low contamination?
The GTM Series · All Ceramics Flat Jet Mill features a fully enclosed grinding chamber and ceramic components, which minimize the risk of contamination from external sources. This design ensures the integrity and purity of the ground materials.
Can the GTM Series · All Ceramics Flat Jet Mill handle abrasive materials?
Yes, the GTM Series · All Ceramics Flat Jet Mill is capable of handling abrasive materials. The flat ceramic nozzles and wear-resistant components can withstand the grinding of abrasive substances, ensuring long-lasting performance.
Where can I find technical support or spare parts for the GTM Series · All Ceramics Flat Jet Mill?
Technical support and spare parts for the GTM Series · All Ceramics Flat Jet Mill can be obtained by contacting NOAH(yznoah@noah-pm.com). They will provide the necessary assistance, troubleshooting, and supply of genuine spare parts to ensure optimal performance and longevity of the equipment.
Investment Return Analysis for GTM Series · All Ceramics Flat Jet Mill:
Growing Demand for Ultra-Fine Grinding: The demand for ultra-fine grinding solutions is increasing across industries such as pharmaceuticals, chemicals, minerals, and advanced ceramics. The GTM Series · All Ceramics Flat Jet Mill, with its ability to achieve precise particle size control and low contamination, is well-positioned to cater to this growing demand, making it an attractive investment opportunity.
Unique All-Ceramic Construction: The all-ceramic construction of the GTM Series · All Ceramics Flat Jet Mill provides a competitive advantage over traditional grinding mills. It ensures low contamination and high purity of the ground materials, meeting the stringent requirements of industries that demand exceptional cleanliness. This advantage can attract customers seeking advanced grinding solutions, enhancing the investment return potential.
Technological Advancements: Continued investment in research and development for the GTM Series · All Ceramics Flat Jet Mill can lead to technological advancements, further improving its grinding efficiency, particle size control, and overall performance. Technological advancements can drive market demand, provide a competitive edge, and contribute to a favorable investment return.
Wide Range of Processable Materials: The GTM Series · All Ceramics Flat Jet Mill can process a wide variety of materials, including powders, granules, and crystalline substances. This versatility expands its market potential, attracting customers from various industries looking for a single solution for their diverse processing needs. The ability to cater to multiple industries increases the likelihood of a higher return on investment.
Cost Savings and Efficiency: The GTM Series · All Ceramics Flat Jet Mill offers cost savings and improved efficiency to customers. Its high grinding efficiency reduces energy consumption and maximizes production output. Additionally, the precise particle size control minimizes material wastage, ensuring consistent product quality and cost-effective operations.
Market Expansion Opportunities: As the demand for ultra-fine grinding solutions continues to grow globally, there are opportunities for the GTM Series · All Ceramics Flat Jet Mill to enter new markets and establish partnerships or distribution networks. International market expansion can lead to increased sales, market share, and overall investment returns.
Longevity and Durability: The GTM Series · All Ceramics Flat Jet Mill is built with robust construction and high-quality ceramic components, ensuring its longevity and durability. This factor reduces the need for frequent maintenance and replacements, resulting in lower operational costs and a higher return on investment over the long term.
After-Sales Support and Spare Parts Availability: The availability of comprehensive after-sales support and genuine spare parts for the GTM Series · All Ceramics Flat Jet Mill is crucial. Strong after-sales service ensures customer satisfaction, minimizes downtime, and fosters long-term relationships. A reliable after-sales support network positively impacts the investment return by promoting customer loyalty and repeat business.
Return on Investment Timeline: The return on investment timeline for the GTM Series · All Ceramics Flat Jet Mill can vary based on factors such as market conditions, customer acquisition, and competition. However, considering the growing demand for ultra-fine grinding solutions, the unique all-ceramic construction, and potential cost savings, investors can expect a reasonable return on their investment within a reasonable timeframe.
Industry Growth Potential: The demand for ultra-fine grinding solutions is expected to grow as industries continue to advance and require precise particle size control. By investing in the GTM Series · All Ceramics Flat Jet Mill, investors can capitalize on this industry growth and benefit from the increasing demand for advanced grinding technology.
Note: This investment return analysis provides a general outlook based on the available information. It is essential to conduct a comprehensive financial analysis, consider market conditions, and evaluate other factors specific to your investment scenario before making any investment decisions.
