泡罩包装机

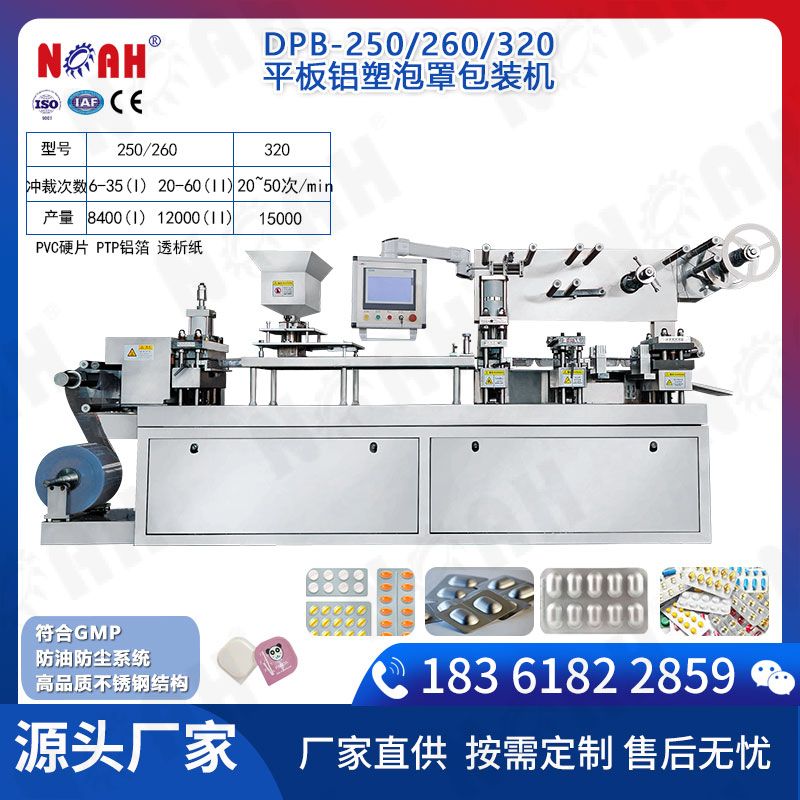

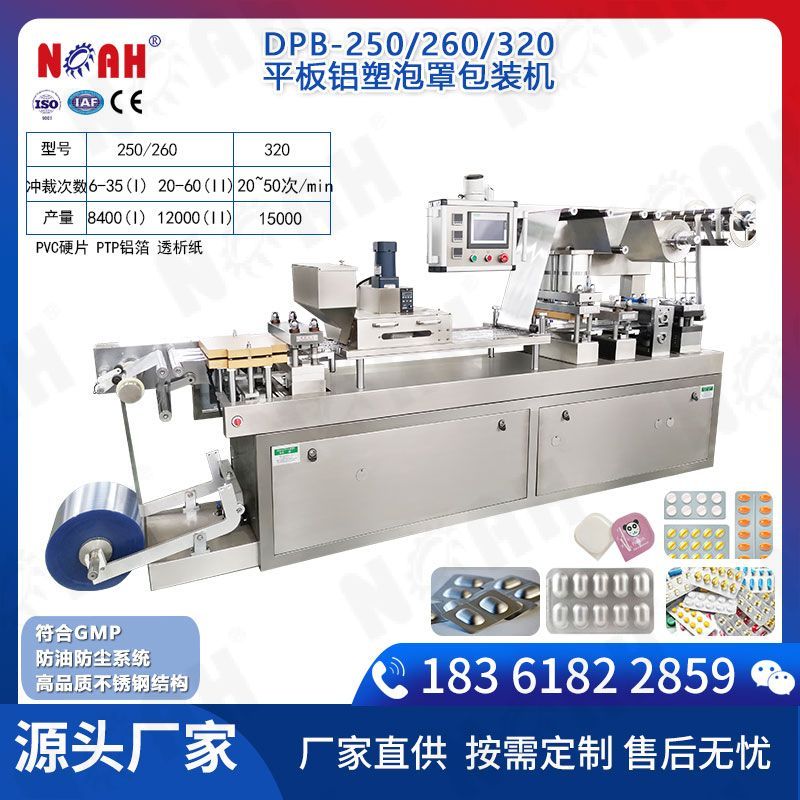

DPB-250/260/320平板铝塑泡罩包装机

Experience seamless and efficient packaging with our high-performance blister packing machine, delivering secure and professional packaging solutions for a wide range of products.

DPB-250/260/320平板铝塑泡罩包装机

 本产品在之前泡罩包装机的基础上,增加了热带铝成型、封合工序、使产品更加具有密封、 防潮和避光效果,并提主了产品档次。适用于制药、食品、医疗器械、保健品等行业的产品包装。

描述

泡罩包装

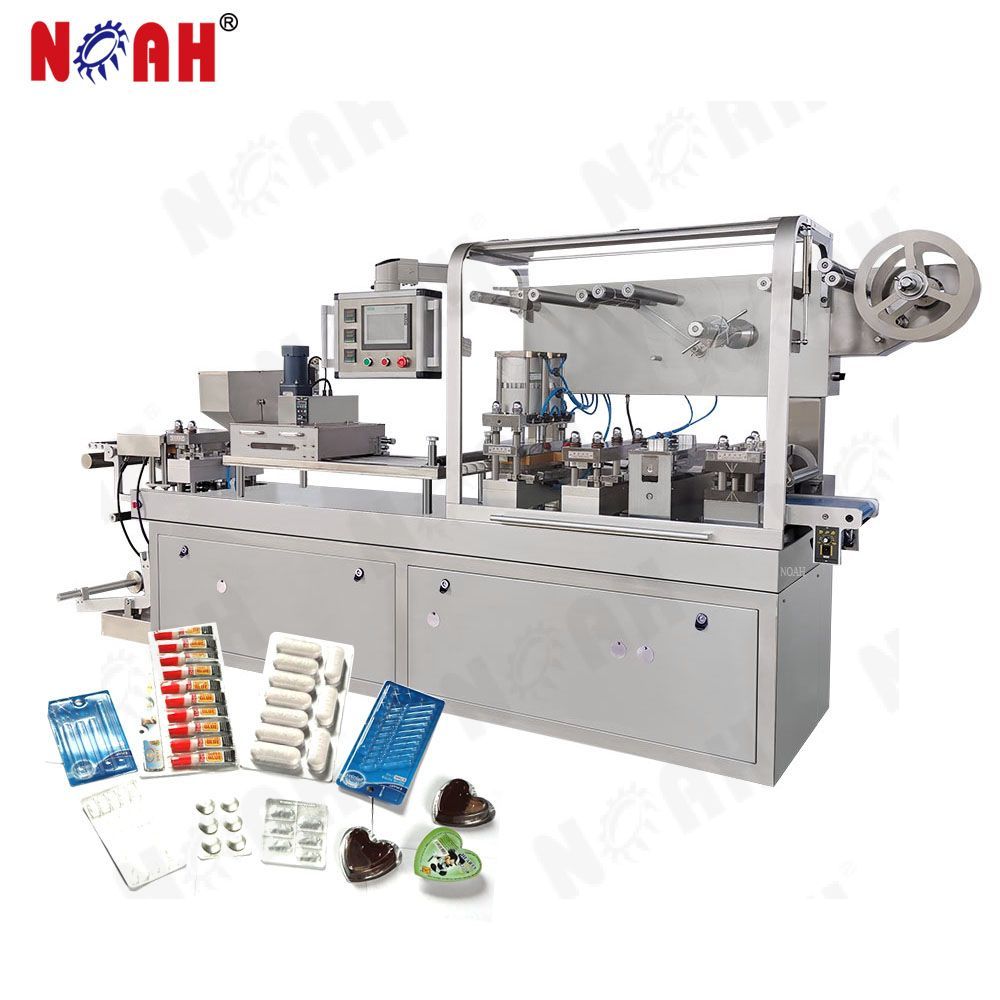

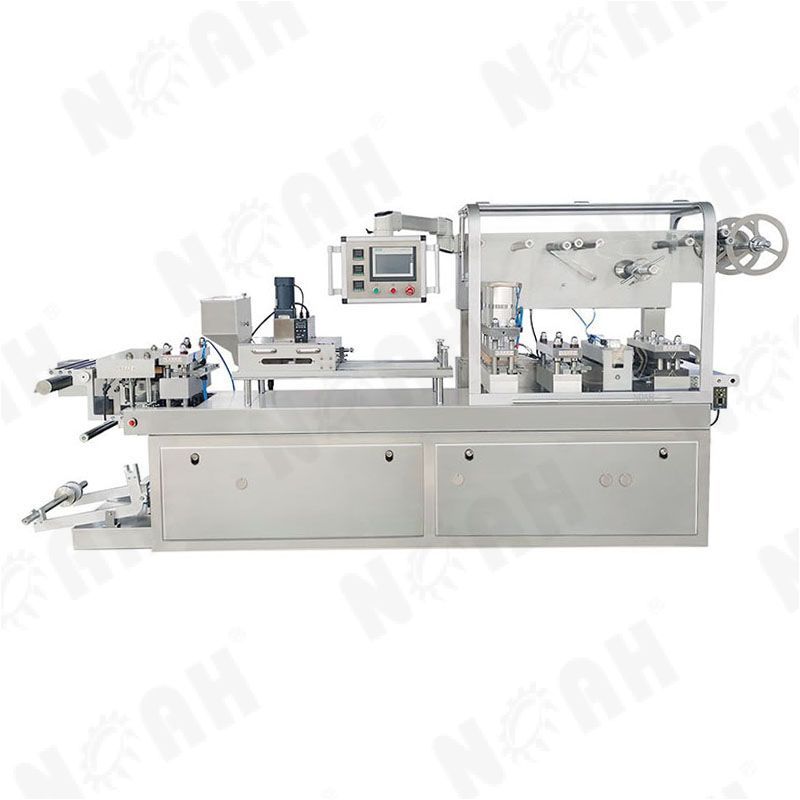

DPB-250/260/320平板铝塑泡罩包装机

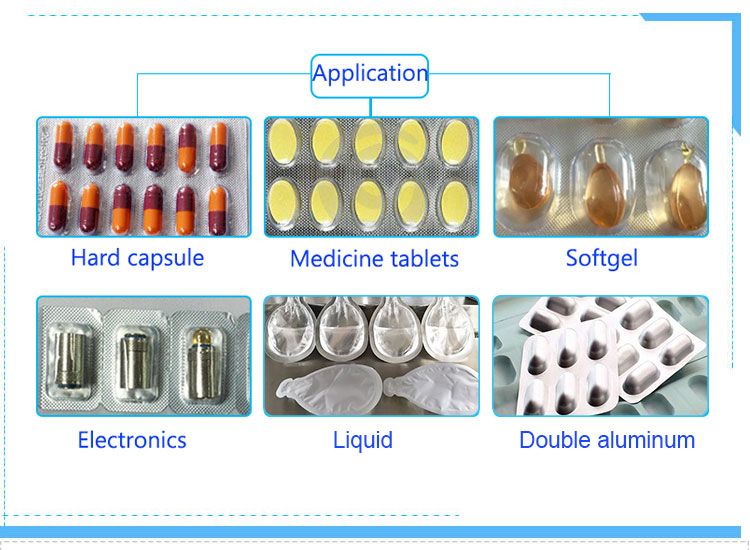

DPB-250/260/320平板自动泡罩包装机专为制药行业设计,可高效包装胶囊、片剂和蜜丸。在食品工业中,它是包装奶片、糖果、巧克力和其他类似产品的理想选择。此外,它还应用于电子和硬件行业,用于包装注射器、注射器、针、小部件等。其多功能设计使其能够处理各种形状和类型的泡罩包装,满足不同行业的不同包装需求。

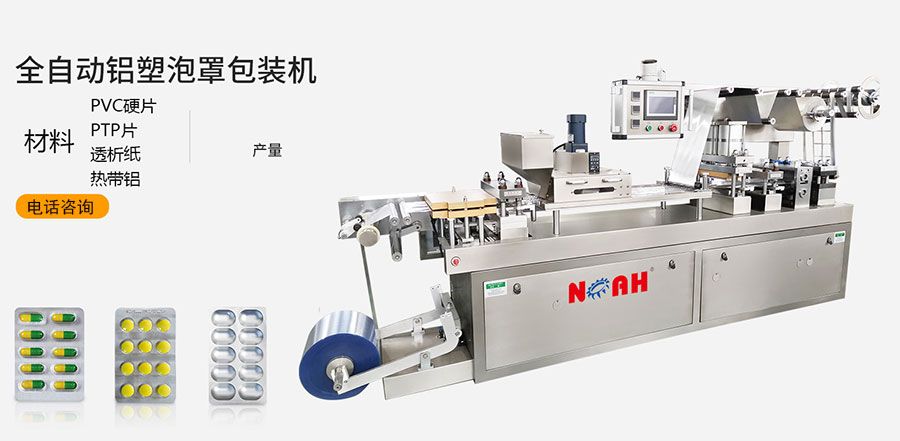

自动泡罩包装机

特点

1)、采用250泡罩包装机原理,导轨式,模具调节方便,定位准确。

2)、由于增加了热带铝成型,热封部分,机身须加长1.8米,所以采用分体式结构,便于运输。

3)、其它厂家采用凹凸配合锁模,会在版块上留下一圈凹槽。不得不将牵引行程加长2mm以便将凹槽作为废边裁出,累计一年浪费材料达几十万元。

4)、本设备硬铝成型使用进口特制橡胶锁模,便得成型表面光滑,无须加长牵引,每次冲裁都能节约2mm材料,约为2.5%。由于热带铝的价格昂贵,本公司的设备每年可以为您节约大量材料,提高效益。


DPB-250/260/320平板自动泡罩包装机是一种先进的高精度泡罩包装机,广泛应用于制药、食品和电子行业。

它设计用于包装各种产品,如胶囊、药片、蜜丸、奶片、糖果、巧克力、注射器、针筒、针和小部件。

本机擅长于不同类型的泡罩包装的封口,包括铝铝、铝塑、纸塑复合封口。

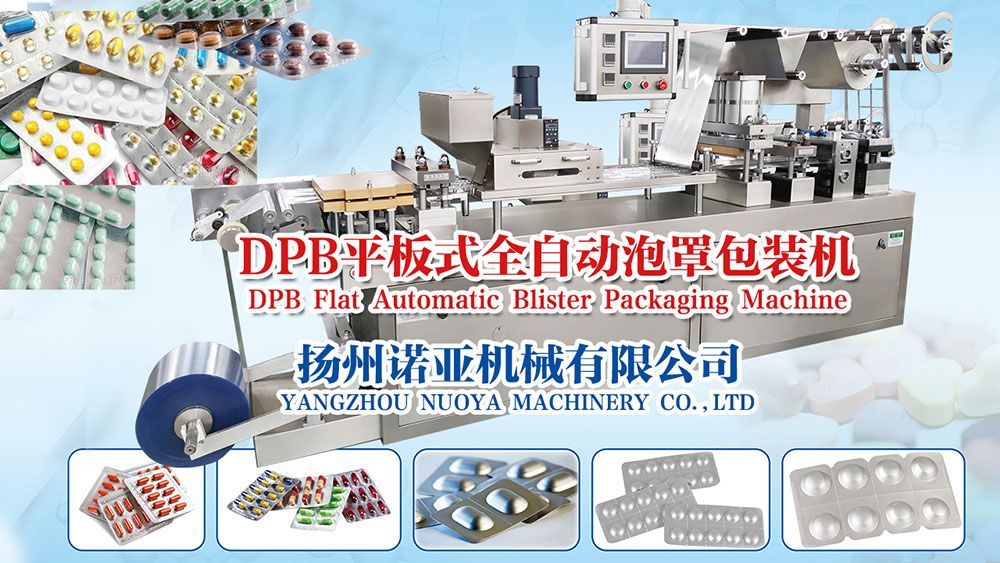

DPB-250/260/320平板铝塑泡罩包装机视频

Pharmaceutical blister pack forming machine

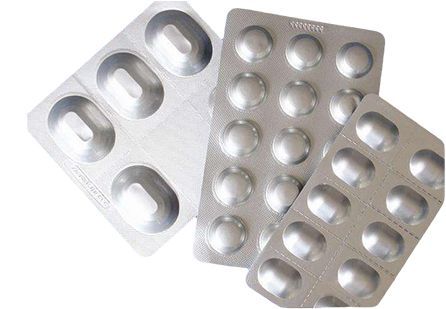

成品展示

Blister Packing
Blister Packing
Blister Packing
Blister Packing
Blister Packing
Blister Packing

参数

型号 ModelDPB-250/260DPB-320
冲往裁次数Cutting Frequency(times/min)6-35(I) 20-60(II)20-50 times/min
生产能力Capacity (strip/h)8400(I) 12000(II)15000(standard blister sheet 80857)
最大成型面积及深度 Max shaping areas and depth(mm)240*160*26320*160*26
行程范围 Stroke(mm)20-120(可按用户要求设计) (can be manufactured as user’s requirements)20-120(可按用户要求设计) (can be manufactured as user`s requirements)
标准版块 Standard Sheet(mm)80X57(can be manufactured as user’s requirements)80*57(can be manufactured as user`s requirements)
空气压力 Air Pressure(Mpa)0.4-0.60.5-0.7
电源总功率 Total power380V/220V 50Hz 6kw380V/220V 50Hz 8kw
主电机功率 Pressure(kw)1.5KW1.5KW
PVC硬片 PVC hard pieces(mm)0.15-0.5*2500.15-0.5*320
PTP铝箔 PTP Aluminum Foil(mm)0.02-0.035*2500.02-0.035*320
透析纸 Dialysis Paper(mm)50-100g*25050-100g*320
模具冷却 Mould Cooling自来水或循环水 tap water or back water自来水或循环水 tap water or back water
外形尺寸 Overall Dimensions(mm)2710*720*16002910*820*1600
重量weight1700KG2200KG


问题FAQ - Have any questions?

What is the DPB-320 Flat-plate Automatic Blister Packing Machine?

The DPB-320 Flat-plate Automatic Blister Packing Machine is an advanced packaging machine designed for automatic blister packing of various products, including pharmaceuticals, food items, cosmetics, and consumer goods.

How does the DPB-320 Automatic Blister Packing Machine work?

The DPB-320 Automatic Blister Packing Machine forms blister packs by heating and molding plastic film or aluminum foil to create individual pockets. It then automatically fills the pockets with products, seals them with a backing material, and perforates the packs for easy opening.

What types of products can be packaged using the DPB-320 Automatic Blister Packing Machine?

The DPB-320 Automatic Blister Packing Machine can package a wide range of solid products, such as tablets, capsules, candies, batteries, and small items that require individual packaging in blister packs.

What are the key features of the DPB-320 Automatic Blister Packing Machine?

The key features of the DPB-320 Automatic Blister Packing Machine include automatic feeding, precise temperature and sealing controls, adjustable blister pack sizes, high-speed operation, automatic perforation, user-friendly interface, and advanced quality control systems.

What is the production capacity of the DPB-320 Automatic Blister Packing Machine?

The production capacity of the DPB-320 Automatic Blister Packing Machine depends on various factors, including the size of the blister packs, product specifications, and operational efficiency. However, it is designed for high-speed and continuous production, catering to large-scale packaging requirements.

Is the DPB-320 Automatic Blister Packing Machine suitable for pharmaceutical packaging?

Yes, the DPB-320 Automatic Blister Packing Machine is widely used in the pharmaceutical industry for packaging tablets, capsules, and other solid dosage forms. It ensures precise product placement, reliable sealing, and perforation for easy access.

Can the DPB-320 Automatic Blister Packing Machine handle different blister pack sizes?

Yes, the DPB-320 Automatic Blister Packing Machine is versatile and can accommodate various blister pack sizes. It allows for easy adjustment of the pocket dimensions to meet specific product requirements.

Does the DPB-320 machine offer quality control features?

Yes, the DPB-320 Automatic Blister Packing Machine often incorporates advanced quality control features. These include vision inspection systems, rejection of defective packs, precise temperature and sealing controls, and monitoring of packaging parameters to ensure high-quality and consistent packaging.

Is technical support available for the DPB-320 Automatic Blister Packing Machine?

Yes, reliable technical support is typically available for the DPB-320 Automatic Blister Packing Machine. Manufacturers provide assistance with installation, training, maintenance, and spare parts availability to ensure smooth operation and minimize downtime.

Can the DPB-320 Automatic Blister Packing Machine integrate with other packaging equipment?

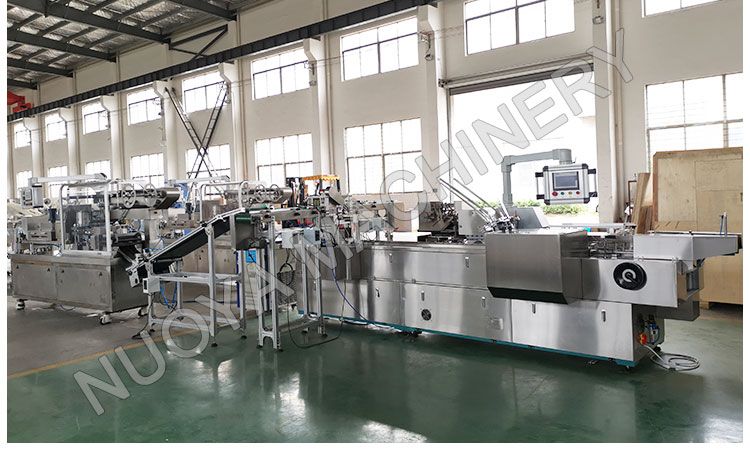

Yes, the DPB-320 Automatic Blister Packing Machine can be integrated with other packaging equipment, such as cartoners or labeling systems, to create a complete and efficient packaging line. This integration enhances overall productivity, reduces manual handling, and streamlines the packaging process.

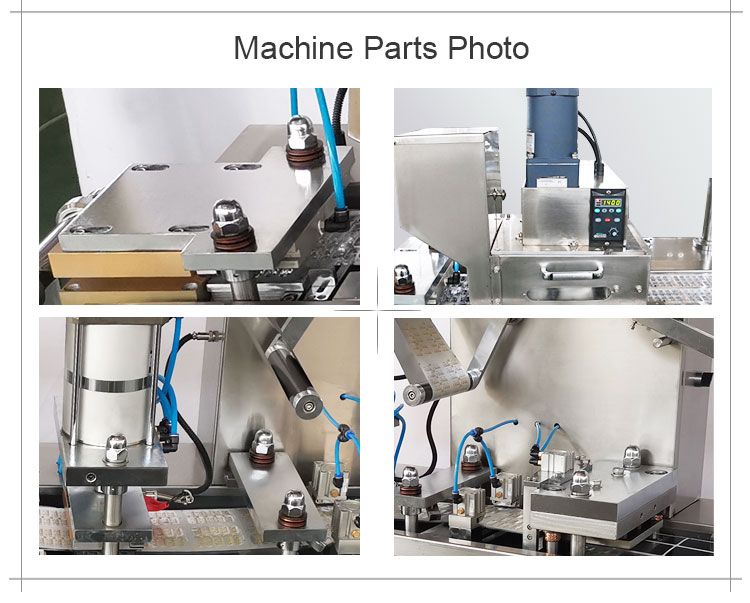

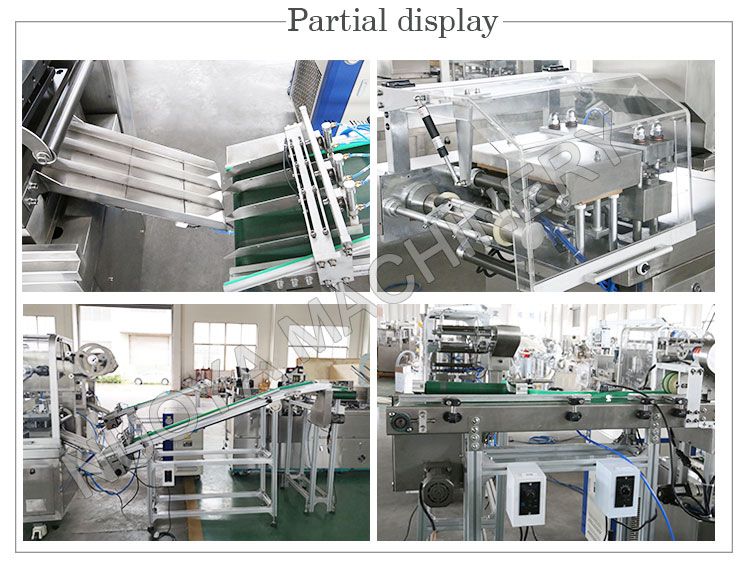

详情
