包装机

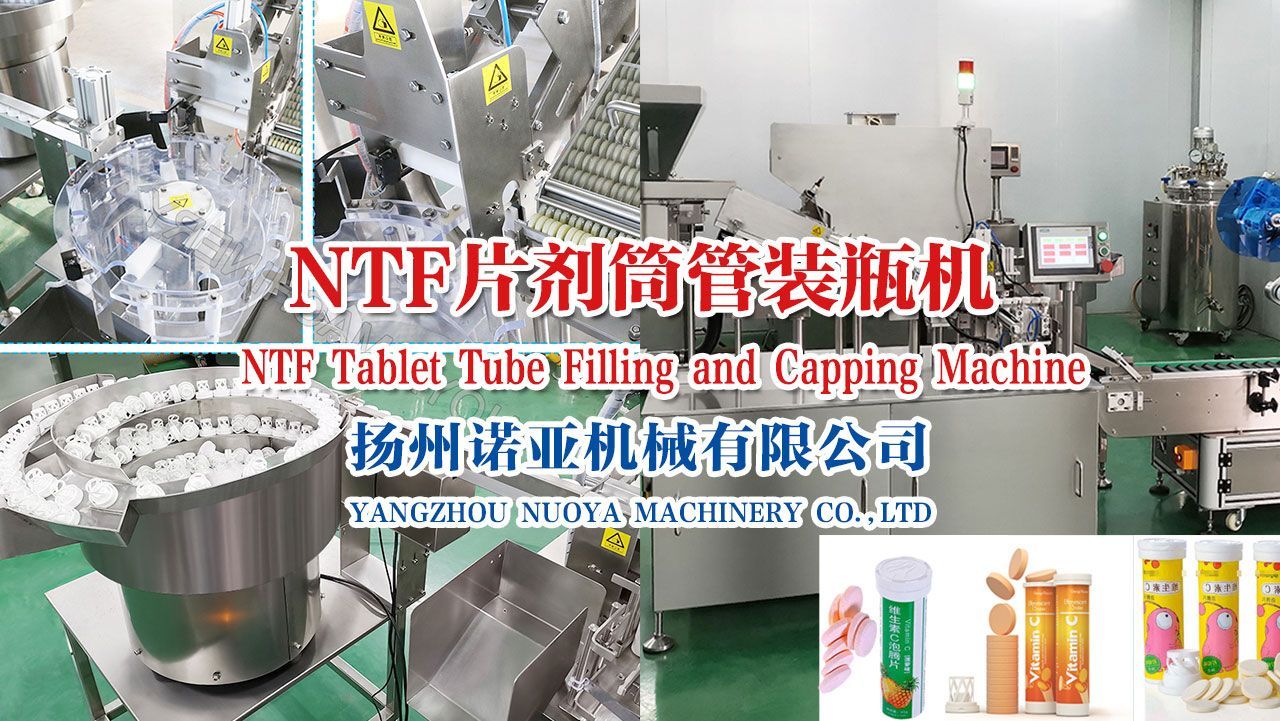

NTF-100片剂筒管装瓶机

Unleash pharmaceutical manufacturing excellence with our cutting-edge Filling and Packing Machine, delivering unmatched precision, efficiency, and compliance.

NTF-100片剂筒管装瓶机

分层填充设计:最佳包装和保护。

自动管进料器:无缝操作的高效装载。

精确的药片计数:100%精确灌装。

智能灌装和封盖:无差错操作。

自动振动碗:平稳放置瓶盖。

压盖密封:密封安全可靠。

检测和剔除:确保质量控制。

PLC+HMI控制系统:用户友好界面。


描述

Effervescent Tablets Tube

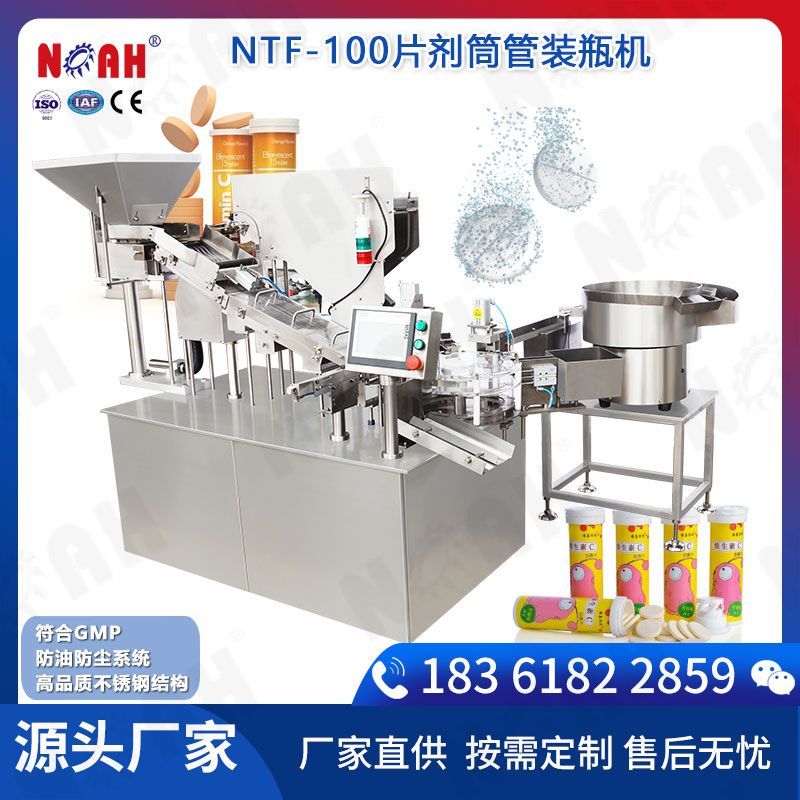

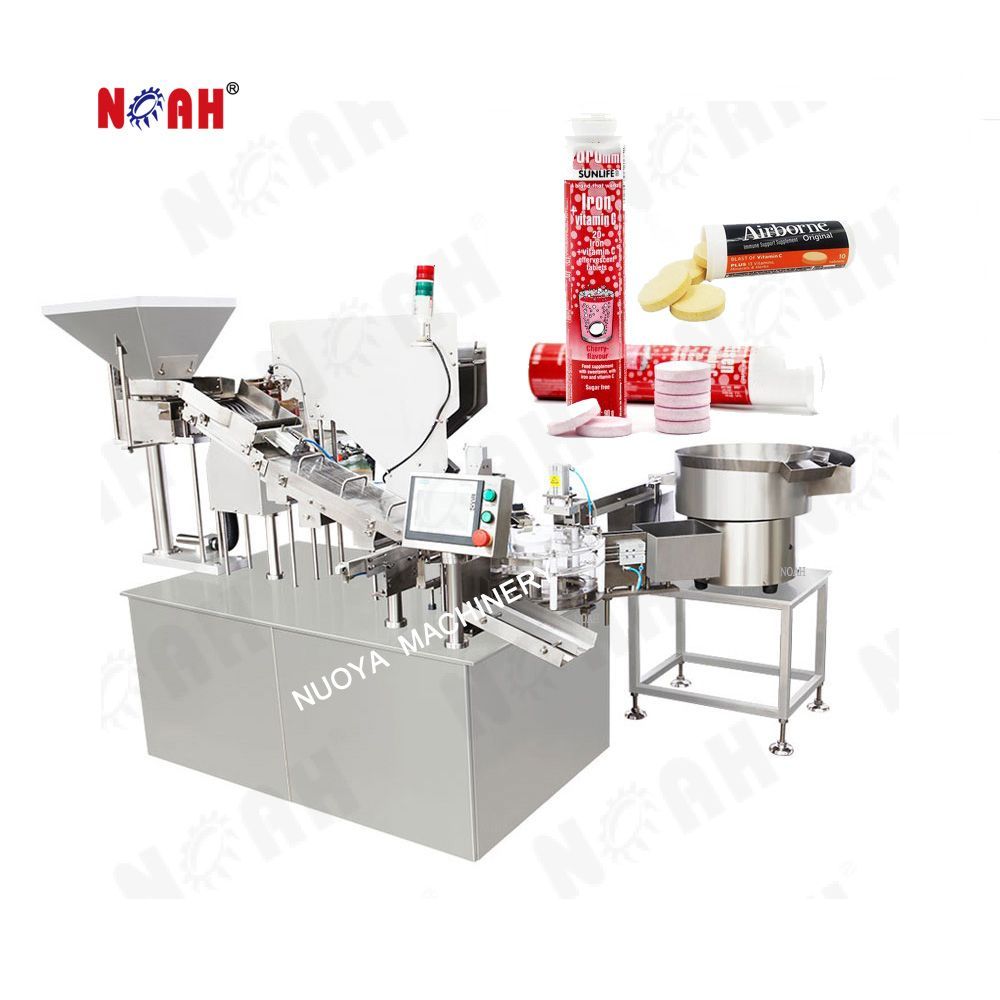

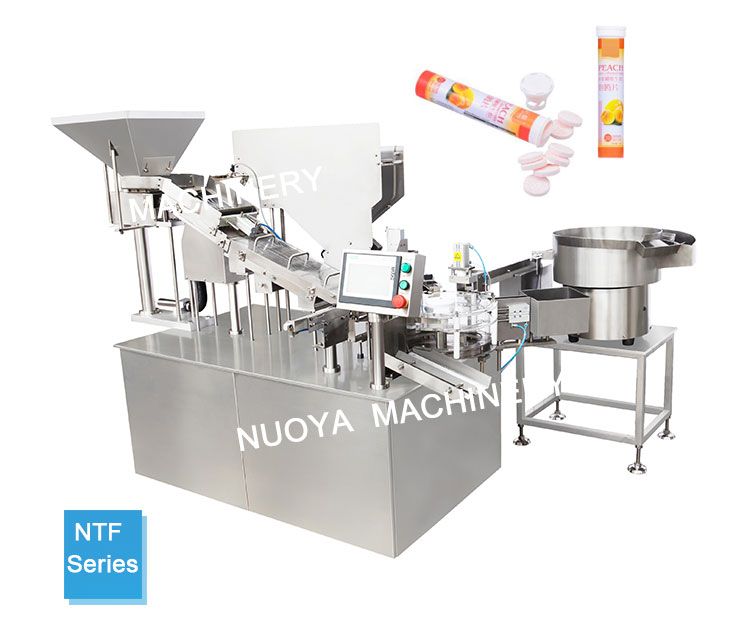

NTF-100片剂筒管装瓶机

NTF-100自动管灌装封盖机广泛应用于制药和医疗保健行业,用于管装片剂的包装。它特别适用于需要精确计数和精确灌装的应用。这台机器简化了生产过程,提高了效率,减少了体力劳动。

泡腾片管灌装机

特点

自动筒管瓶片剂瓶装机,适用于大片较薄单排有序排列装入长瓶的包装,该设备采用可编程控制器控制,光纤检测。性能稳定,全自动运行。

技术参数:

装量:10-30片/瓶;

片剂直径:8-30mm

片剂厚度:3mm-8mm;

管瓶长度:80mm-180mm

产量:40瓶/分钟,

尺寸:2300mm*1600mm*1680mm

适用范围:泡腾片直管瓶装片和压盖,清凉候片筒管瓶包装以及类似这种包装的装片和压盖。


NTF-100自动试管灌装压盖机是一种安全、高效、精确和清洁的设备,因其卓越的质量和性能而备受推崇。


该机器专为将片剂分层灌装到管中并随后在顶部放置塑料塞而设计,为自动化管灌装和封盖过程提供了全面的解决方案。它结合了先进的功能,以确保精确和可靠的操作。


NTF-100片剂筒管装瓶机视频

Effervescent Tablets Tube Packing Machine

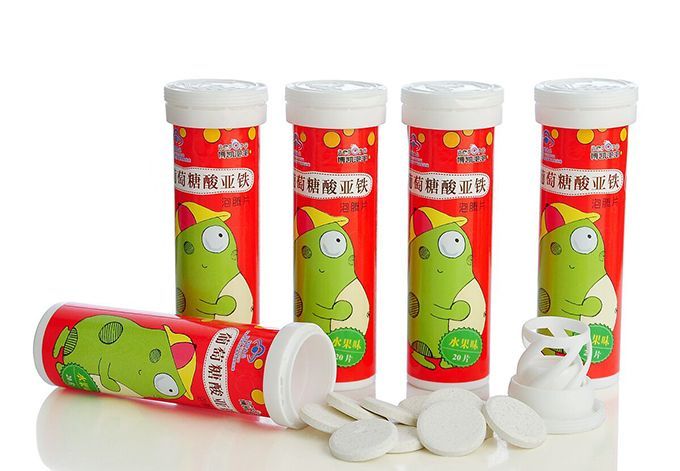

成品展示

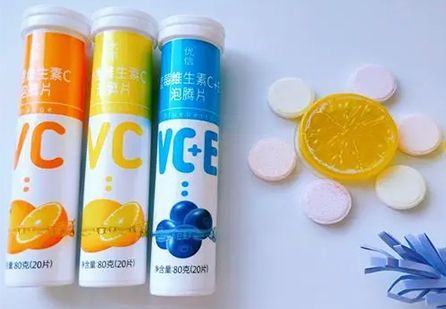

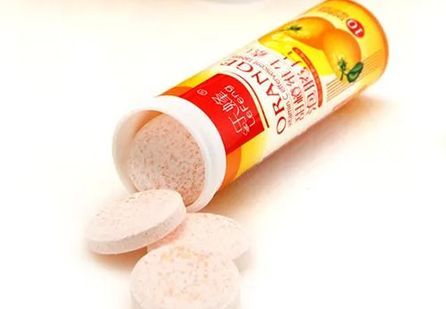

Effervescent Tablets Tube
Effervescent Tablets Tube

参数

型号ModelNTF-100
装量Filling range10-30pcs/tube as per customer's requirement
片剂直径 Diameter of tablet8-30mm
片剂厚度 Thickness of Tablet3-8mm
管瓶长度 Length of Tube80-180mm
产量 Max. Capacity40Tubes/min depending on the product and tube size
功率Power supply1.2kw
压缩空气Compressive air0.5~0.6MPA, 0.28CBM/min
尺寸Overall size2300mm*1600mm*1680mm
重量Weight450Kgs



问题FAQ - Have any questions?

What is the NTF-100 Automatic Tube Filling Capping Machine used for?

The NTF-100 Automatic Tube Filling Capping Machine is specifically designed for filling and capping tubes with various products, such as creams, ointments, gels, and pastes.

What types of tubes can be filled and capped using the NTF-100 machine?

The NTF-100 Automatic Tube Filling Capping Machine is suitable for filling and capping various types of tubes, including plastic, laminate, and aluminum tubes.

What is the filling capacity of the NTF-100 machine?

The filling capacity of the NTF-100 Automatic Tube Filling Capping Machine depends on the specific model and the viscosity of the product being filled. It can handle a range of filling capacities from a few milliliters to several hundred milliliters.

Does the NTF-100 machine support different tube sizes and shapes?

Yes, the NTF-100 Automatic Tube Filling Capping Machine is adjustable and can accommodate different tube sizes and shapes. It offers flexibility to handle various packaging requirements.

Can the NTF-100 machine handle both hot and cold filling processes?

Yes, the NTF-100 Automatic Tube Filling Capping Machine is designed to handle both hot and cold filling processes, depending on the product and production needs.

What types of caps can be applied using the NTF-100 machine?

The NTF-100 Automatic Tube Filling Capping Machine can apply various types of caps, including screw caps, flip-top caps, and snap-on caps, depending on the specific cap design and product requirements.

Does the NTF-100 machine have a control system for precise filling and capping operations?

Yes, the NTF-100 Automatic Tube Filling Capping Machine is equipped with an advanced control system that ensures precise filling and capping operations, including accurate filling volume and secure cap application.

What is the production speed of the NTF-100 machine?

The production speed of the NTF-100 Automatic Tube Filling Capping Machine varies depending on the specific model and the characteristics of the product being filled. It can range from 30 to 100 tubes per minute.

How is the cleanliness and hygiene maintained during the filling process?

The NTF-100 Automatic Tube Filling Capping Machine is designed with cleanliness and hygiene in mind. It includes features such as automatic tube cleaning, sterilization systems, and dust-free filling environments to ensure product integrity and compliance with hygiene standards.

Is technical support available for the NTF-100 machine after purchase?

Yes, technical support is typically provided by NOAH. This support includes troubleshooting assistance, spare parts availability, and remote or on-site support if needed.

详情

NTF-100片剂筒管装瓶机

NTF-100片剂筒管装瓶机

NTF-100片剂筒管装瓶机

NTF-100片剂筒管装瓶机

NTF-100片剂筒管装瓶机

NTF-100片剂筒管装瓶机

NTF-100片剂筒管装瓶机

NTF-100片剂筒管装瓶机

NTF-100片剂筒管装瓶机
