干燥机系列

DW系列带式干燥机

Efficiently remove moisture and accelerate drying processes with our cutting-edge drying machine, ensuring optimal product quality and productivity.

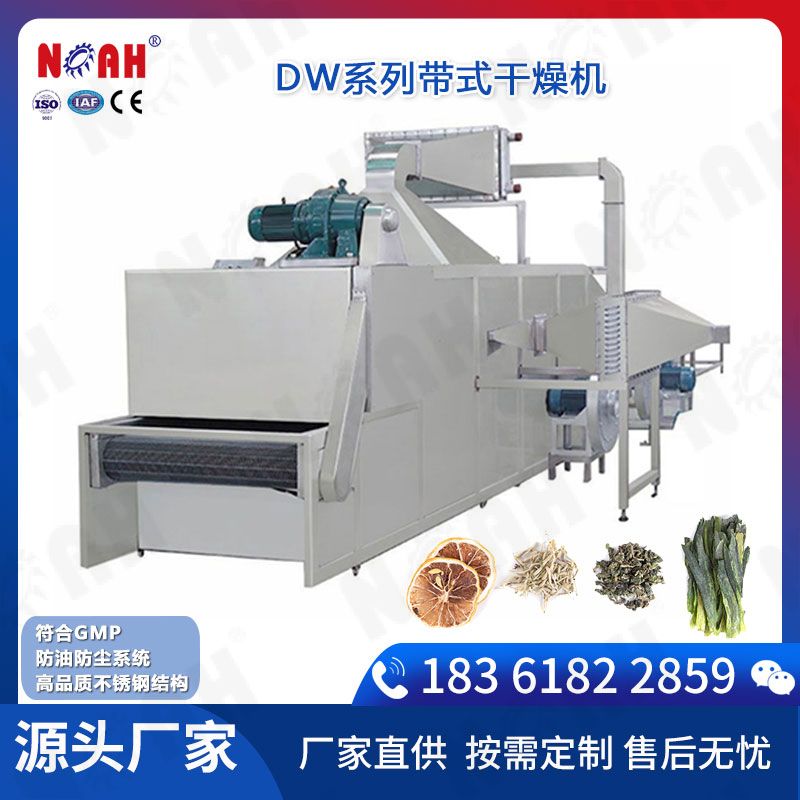

DW系列带式干燥机

所要处理的物料通过适当的辅料部分,如星型布料器、摆动带、粉碎机或造粒机、分布在输送带上,输送带通过一个或几个加热单元组成的通道,每个加热单元均配有 空气加热和循环系统,各通道有一个或几个排湿系统,在输送带通过时,热空气从上往下或从下往上通过输送带上的物料,从而使物料能均匀干燥。



描述

食品工业中的带式干燥机

DW系列带式干燥机

应用:

带式干燥机是常用的连续式干燥设备,可应用在化工、食品、医药、建材、电子等行业,适合于透气较好的片状、条状、颗粒状物料的干燥,对滤饼类的膏状物料,也可通过造粒机或挤条机制成型后进行干燥。


带式干燥机

特点

1. 可以调节空气量、加热温度、物料停留时间及加料速度以取得干燥效果。

2. 设备配置灵活,可使用网带冲洗系统及物料冷却系统。

3. 大部分空气循环利用,节省能源。

4. 分风装置,使热风分布均匀,保持产品品质的一致性。

5. 热源可采用蒸气、导热油、电或燃煤(油)热风炉配套

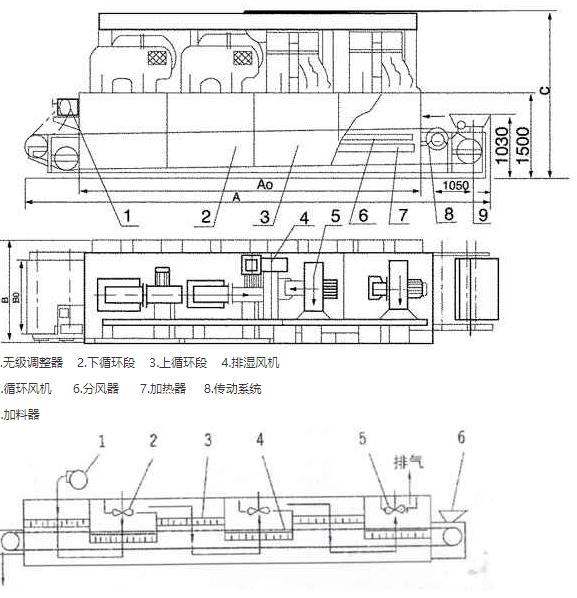

结构示意图:

ll.无级调整器    2.下循环段    3.上循环段    4.排湿风机

5.循环风机      6.分风器      7.加热器     8.传动系统

9.加料器

1.进气风机      2.循环风机      3.蒸汽加热器

4.输送带        5.排气风机      6.加料器


典型产品:

脱水蔬菜、颗粒饲料、味精、鸡精、椰蓉、有机颜料、合成橡胶、丙烯纤维、药品、小木制塑料制品、电子元器件老化、固化、碳酸钙、白炭黑染料等

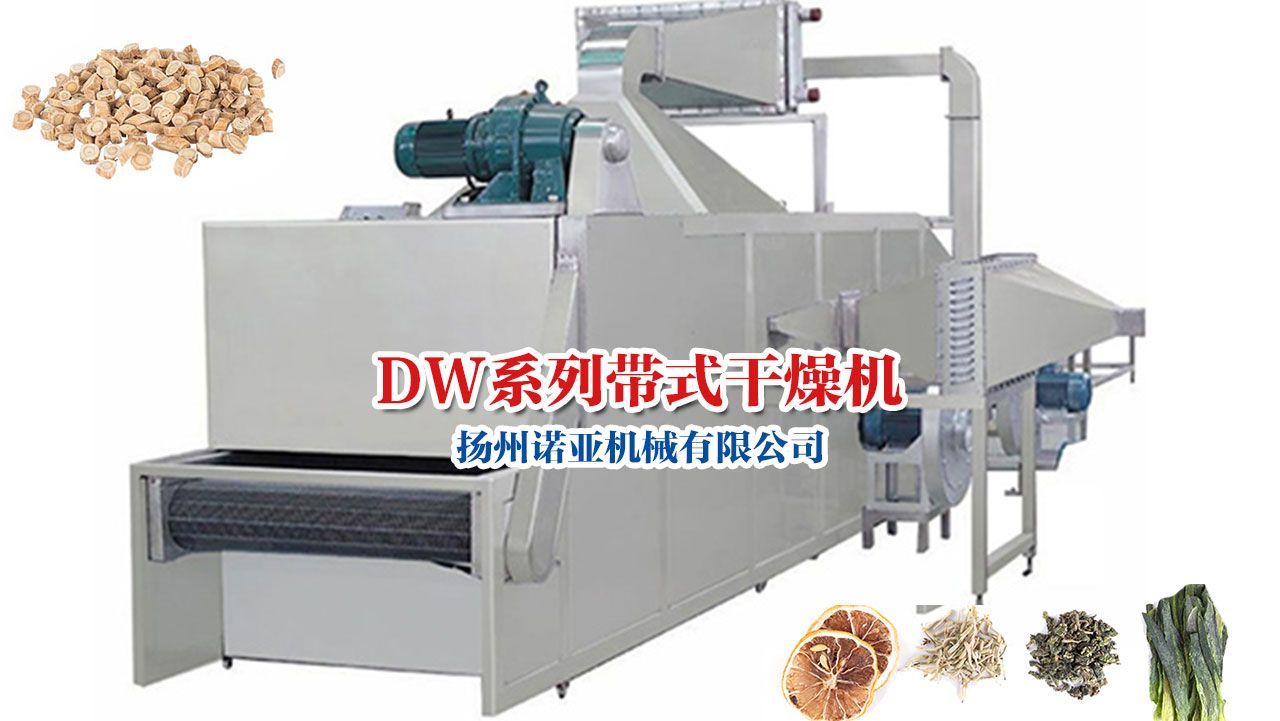

DW系列带式干燥机

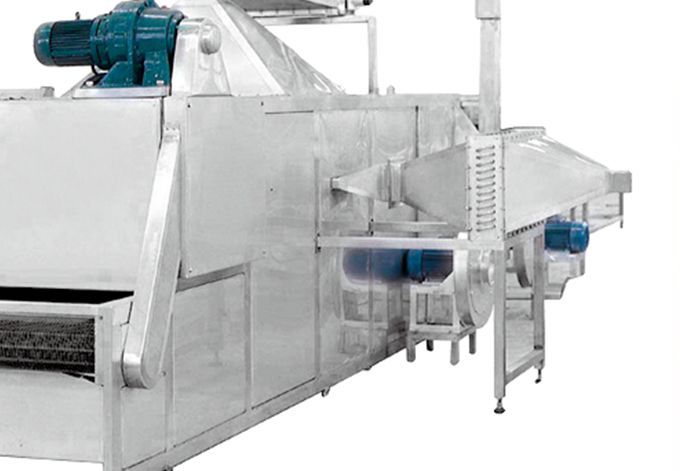

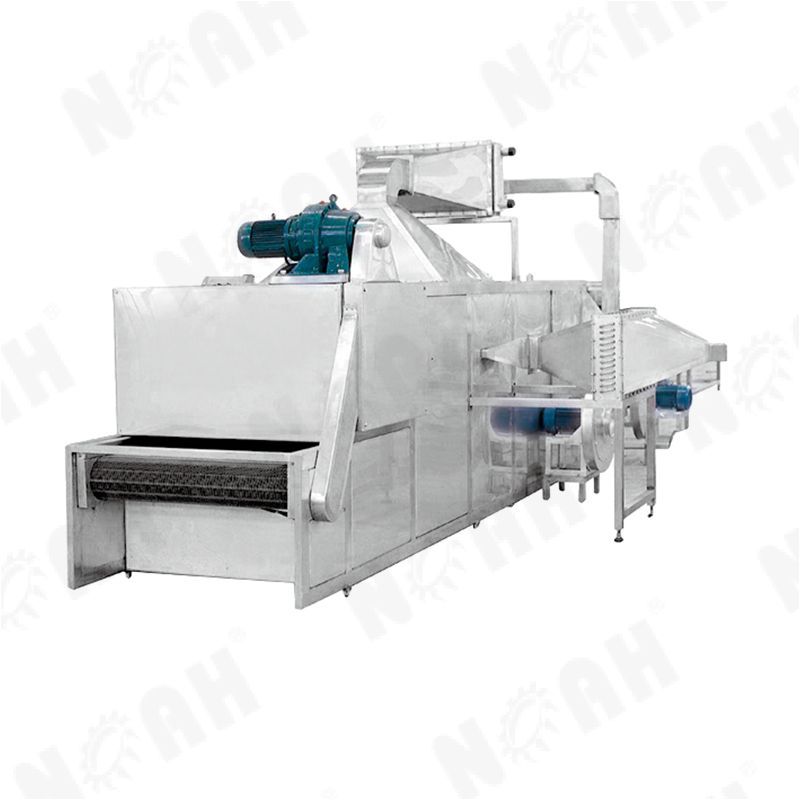

Belt dryer machine

成品展示

Belt dryer in food industry
Belt dryer in food industry
Belt dryer in food industry
Belt dryer in food industry
Belt dryer in food industry
Belt dryer in food industry
Belt dryer in food industry

参数

型号ModelDW-1.2-8DW-1.2-10DW-1.6-8DW-1.6-10DW-2-8DW-2-10
单元数Unit NO.46 546 546 5
带宽 Belt Width (m)1.21.21.61.622
干燥段长 Drying Section Length (m)810810810
铺料厚( Thickness of Material mm ≤60
使用温度(°C) Temperature 50-140
蒸汽压力 Steam Pressure Mpa0.2-0.8
蒸汽耗量 Steam Consumption Kg/h120-300150-375150-375170-470180-500225-600
干燥强度 Drying Strength Kg/h60-16080-22075-22095-250100-260120-300
功率Power of Blower KW3.34.46.68.81216
设备总功率 Total Power of Machine KW11.413.611.413.614.715.8



蔬菜专用机械Specialized machine for vegetable


型号ModelUnitDWP-2-10-3DWF-2-10-3DW5-3-12
带宽 Effective Belt Widthm223
干燥段长 Effective Belt Lengthm/unit101012

Tandem Quantity


33
Layers


5
Vegetable Capacitykg/h6007202000
Evaporate Strengthkg/h400-510480-6401440-1800
Consumption of SteamKgsteam/KgH2O2.2-2.52.2-2.52.2-2.4
Heat Radiation Aream290014402600
Total Power of the Machinekw7052150
Overall Sizem33.2×2.58×2.833.2×2.27×2.8515.3×4.3×8.5
Heat Source Typesteam, theermal conductivity oil, hot air furnace, electric


饲料专用机械(框架式)Specialized Machine for Feed (Frame Type)

ModelunitDWZ-3×12
Effective Belt Widthm3
Effective Belt Lengthm/unit12
Using Temperature80-130
Pressure of SteamMpa0.4-0.8
Drying Timemin35-50
Thickness of Materialcm5-8
Drying Strengthkg/h6-20
Consumption of SteamKgsteam/KgH2O2-2.4
total power of the machinekw76
overall sizem15.1×4.3×3.4

问题FAQ - Have any questions?

What is the DW Series Belt Dryer?

The DW Series Belt Dryer is a type of continuous drying equipment used in various industries to remove moisture from materials by passing them through a drying chamber on a conveyor belt. It offers efficient and uniform drying capabilities.

What types of materials can be dried using the DW Series Belt Dryer?

The DW Series Belt Dryer is suitable for drying a wide range of materials, including food products, agricultural products, chemicals, pharmaceuticals, and minerals. It can accommodate both solid and granular materials, making it versatile for different drying applications.

How does the DW Series Belt Dryer work?

The DW Series Belt Dryer operates by feeding the wet material onto a continuously moving conveyor belt. The material is spread evenly on the belt and passes through multiple drying zones with controlled temperature and airflow. As it moves along the belt, hot air is circulated to remove moisture, resulting in effective drying.

What are the key features of the DW Series Belt Dryer?

The DW Series Belt Dryer features a continuous drying process, adjustable drying parameters, precise temperature control, uniform airflow distribution, a reliable heating system, and a user-friendly control panel. These features ensure optimal drying performance and ease of operation.

What are the advantages of using the DW Series Belt Dryer?

The DW Series Belt Dryer offers several advantages, including high drying efficiency, uniform drying results, continuous operation, adjustable drying parameters, energy-saving operation, and easy maintenance. These benefits contribute to improved productivity and cost-effectiveness for drying processes.

Can the DW Series Belt Dryer be customized for specific drying requirements?

Yes, the DW Series Belt Dryer can be customized to meet specific drying requirements. It can be tailored in terms of belt width, drying chamber length, temperature range, airflow distribution, and control system features. This customization ensures the dryer can effectively meet the unique needs of different industries and applications.

Is the DW Series Belt Dryer suitable for heat-sensitive materials?

Yes, the DW Series Belt Dryer is designed to provide gentle drying for heat-sensitive materials. It offers precise temperature control, adjustable airflow, and a controlled drying environment to minimize the risk of overheating or damaging delicate materials during the drying process.

How can the DW Series Belt Dryer be integrated into existing production lines?

The DW Series Belt Dryer can be easily integrated into existing production lines. It can be connected to other equipment such as feeders, crushers, and packaging machines, allowing for seamless material flow and efficient production processes.

What safety features does the DW Series Belt Dryer have?

The DW Series Belt Dryer is equipped with safety features such as temperature monitoring, airflow control, emergency stop buttons, and safety interlocks. These features ensure safe operation and protect both the equipment and operators from potential risks.

Can the DW Series Belt Dryer be used for large-scale drying operations?

Yes, the DW Series Belt Dryer can be designed and manufactured for large-scale drying operations. Its modular construction allows for easy scalability, enabling the dryer to handle high volumes of material and meet the demands of large production capacities. Note: This FAQ provides general information about the DW Series Belt Dryer. For specific details and technical specifications, it is recommended to consult NOAH(yznoah@noah-pm.com).

详情

DW系列带式干燥机

DW系列带式干燥机

DW系列带式干燥机

DW系列带式干燥机

DW系列带式干燥机

DW系列带式干燥机

DW系列带式干燥机

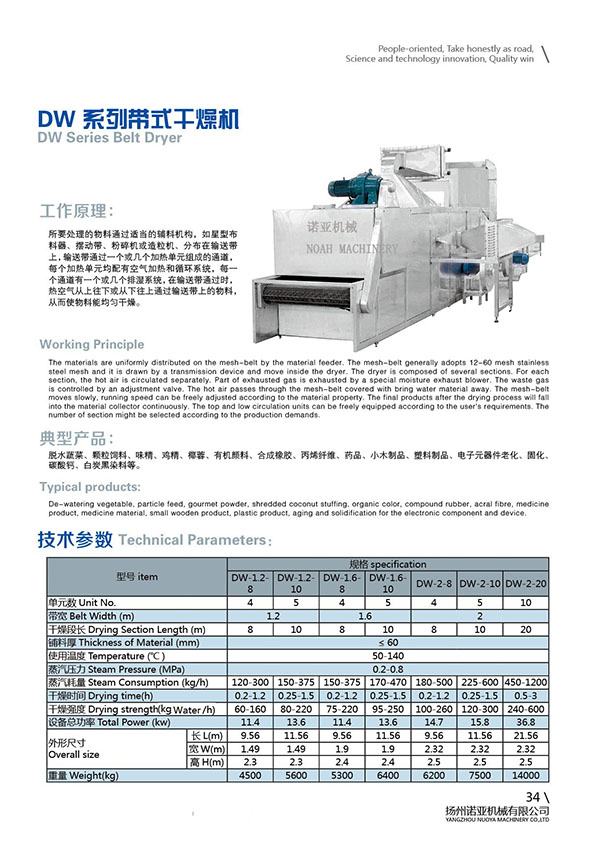

样册下载Brochures Download
