胶囊灌装充填机

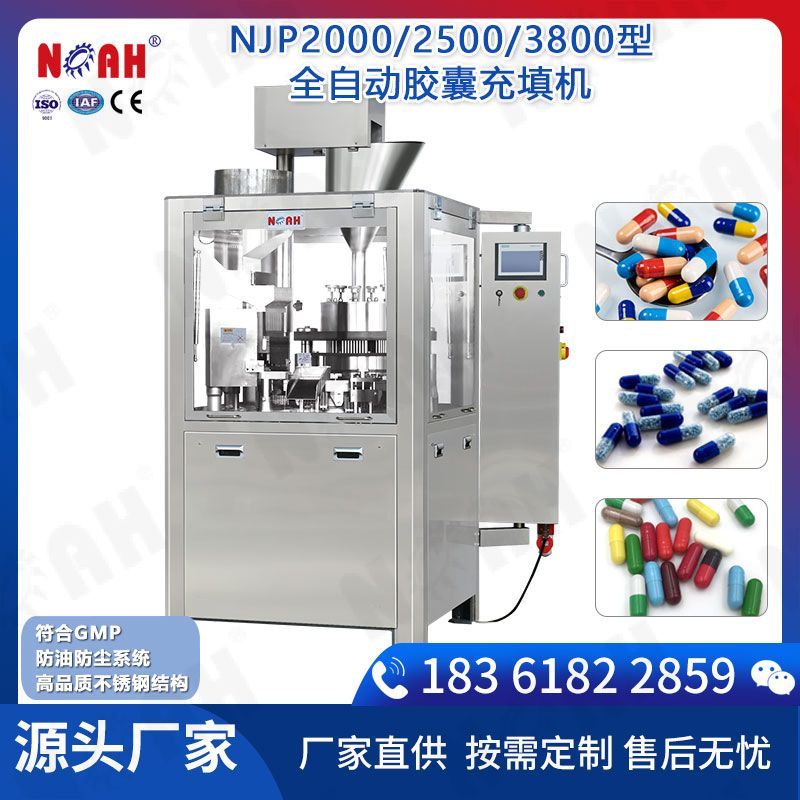

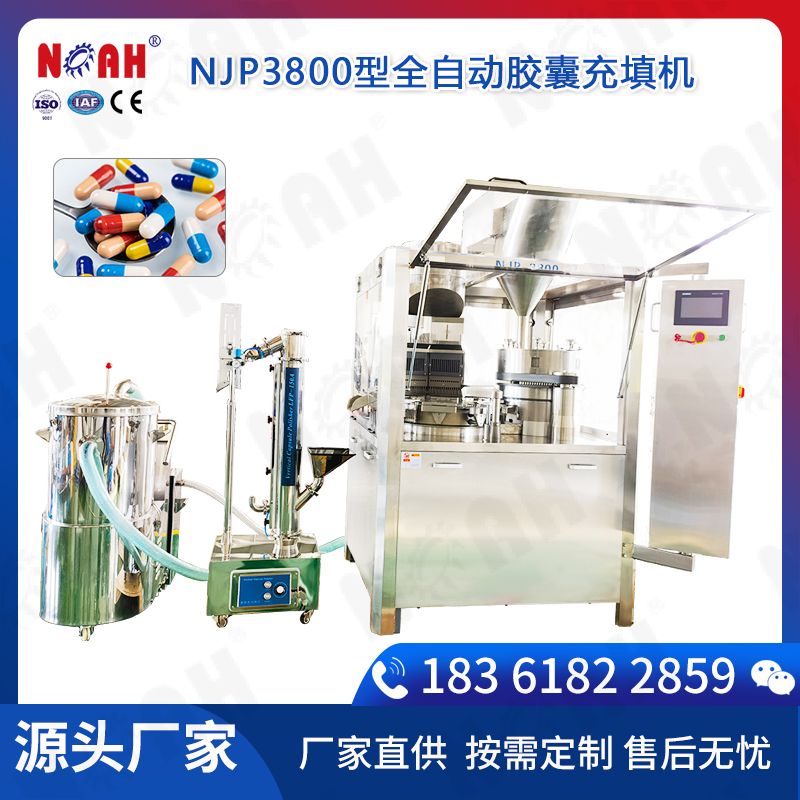

NJP2000/2500/3800型全自动胶囊充填机

Discover the perfect solution for efficient and precise capsule filling with our top-of-the-line capsule-filling machine.

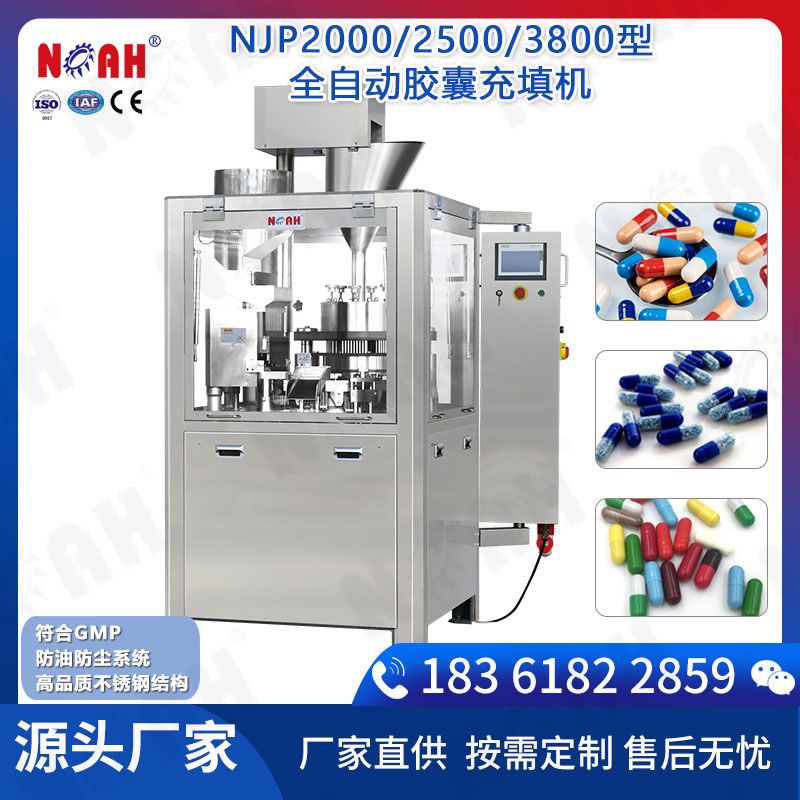

NJP2000/2500/3800型全自动胶囊充填机

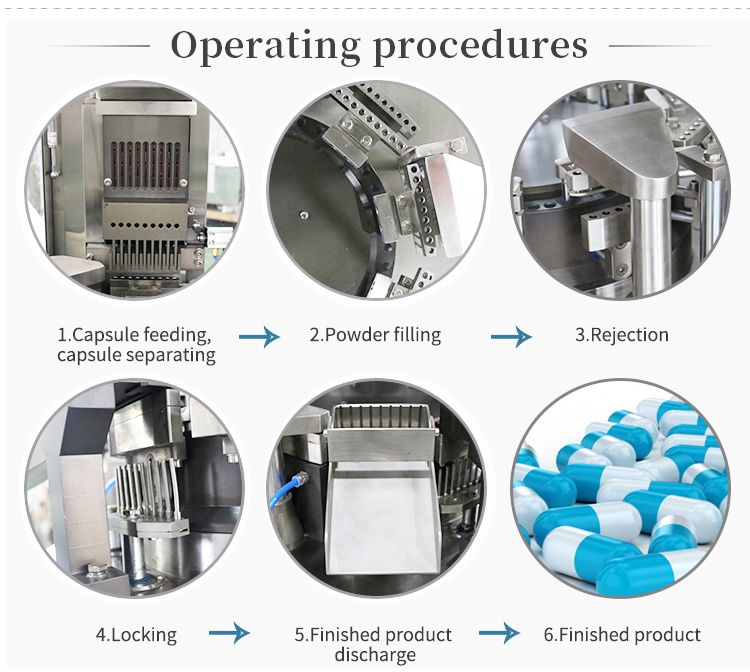

本机是一种间歇式运作,孔盘式充填的全自动硬胶囊充填设备。该机结合中药的特性和GMP的要求进行了优化设计,具有结构紧凑、机型小、噪音低、充填剂量准确、功能齐全、运行平稳等特点,能同时完成播囊、分囊、充填、剔废、锁紧、成品出料、模块清洗等动作,是药品、保健品等生产企业理想的硬胶囊充填设备。

描述

胶囊充填机

NJP2000/2500/3800型全自动胶囊充填机

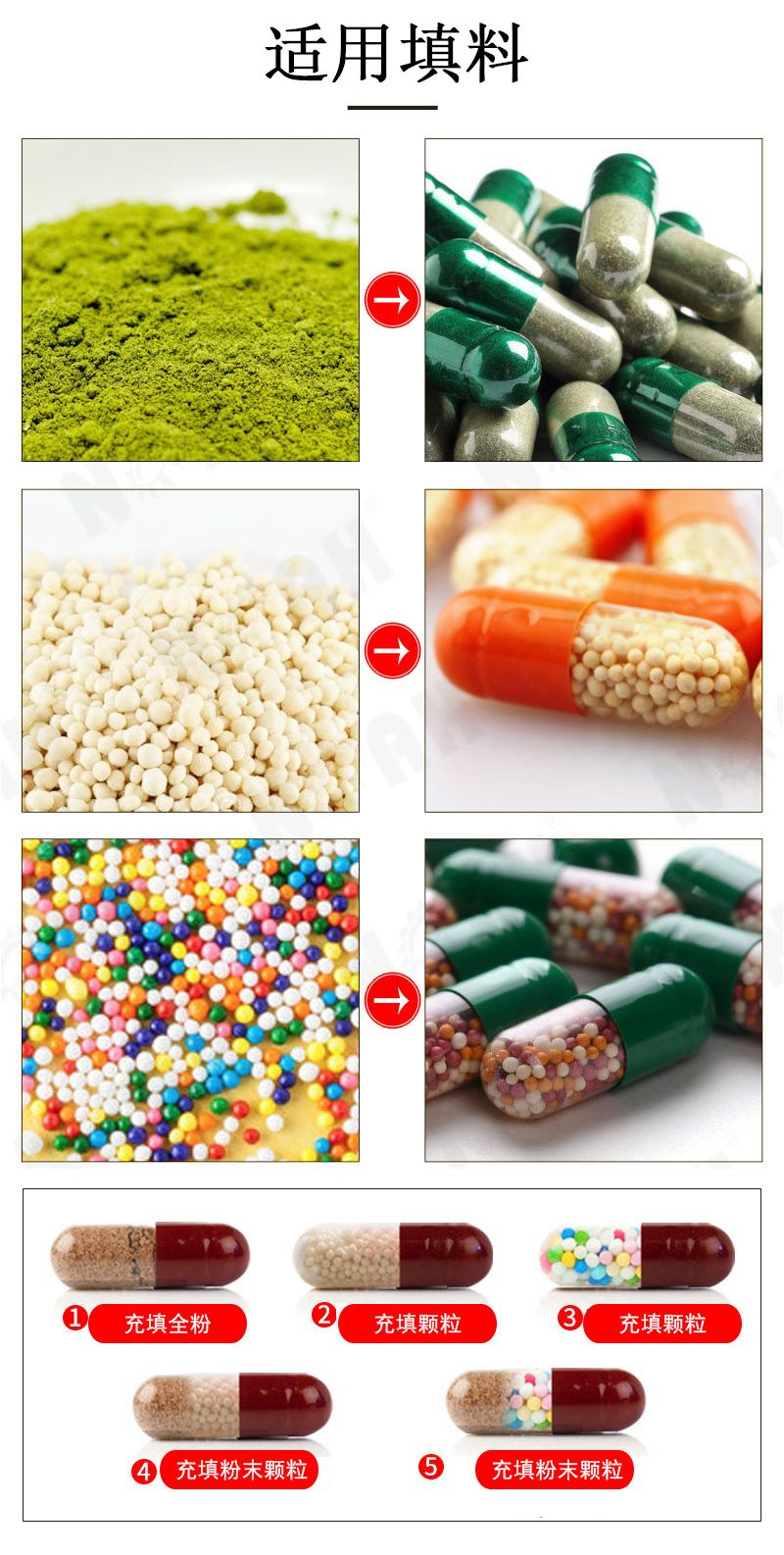

NJP2000/2500/3800自动胶囊充填机广泛应用于制药、医药和化工行业。它专门设计用于向胶囊中填充各种材料,包括粉末、颗粒、冲剂、药丸、维生素、食品和兽药。这款多功能机器可满足这些行业的各种需求,提供高效准确的胶囊灌装。

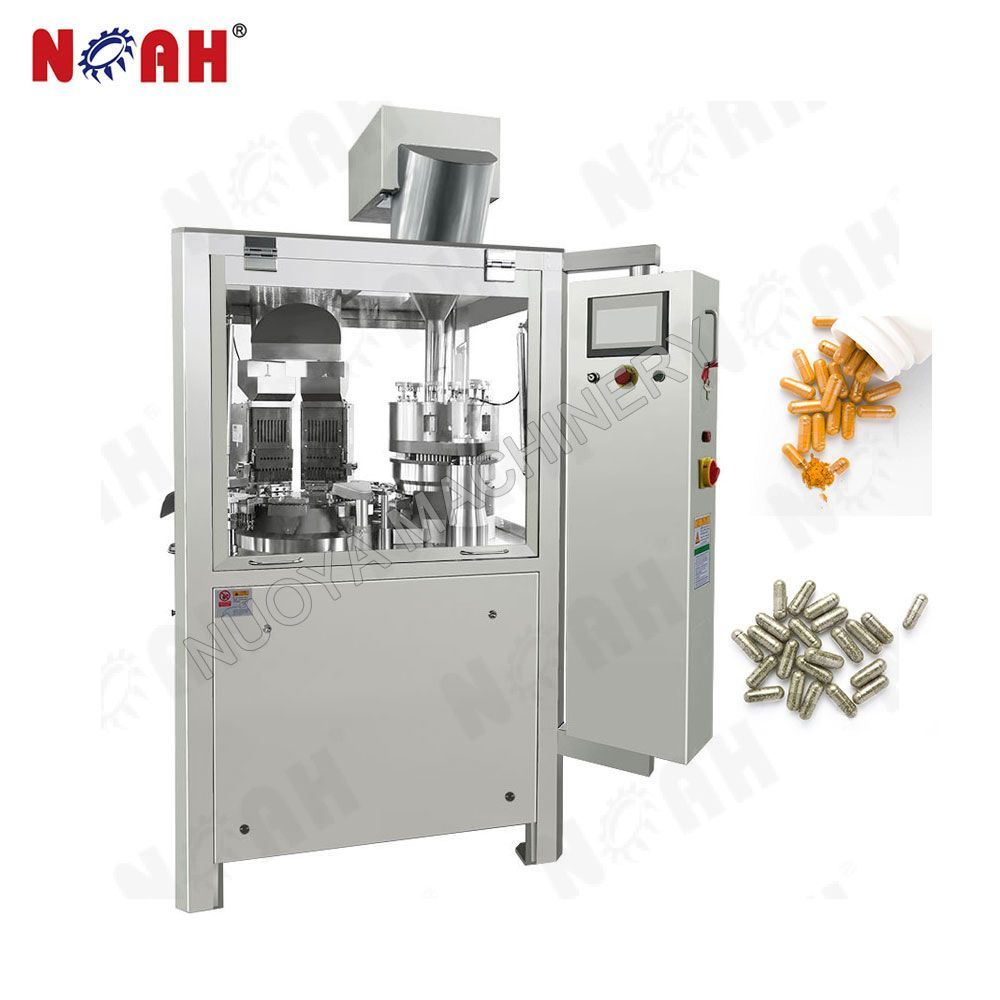

自动粉末胶囊充填机

特点

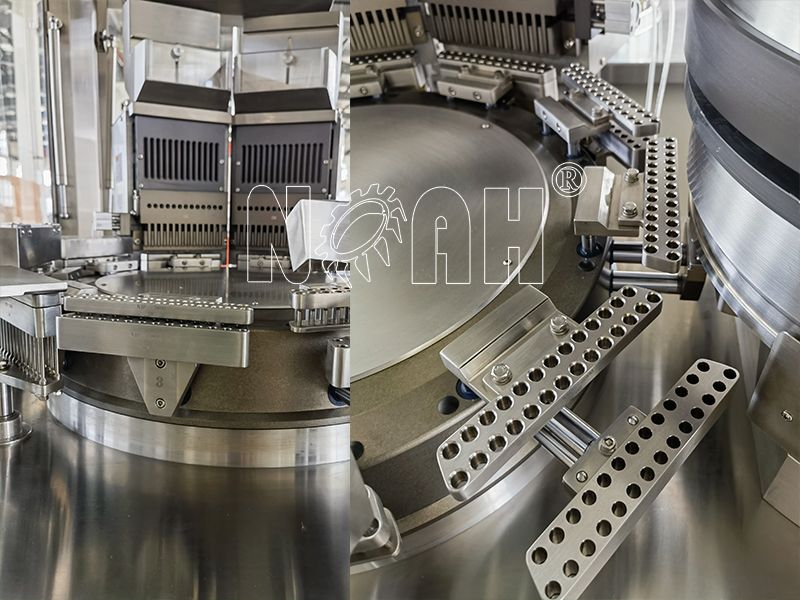

1、工作转台采用封闭式的技术,解决了拆洗模具繁琐,装配模具精度难以调整的难题。

2、剂量调整部分采用支架调节技术,在不停机的状态下可微调剂量。

3、工位运转采用下置槽凸轮结构,润滑性能好,磨损程度小,延长了零 部件的使用寿命。

4、采用微电脑控制技术,提高生产过程的自动化控制水平, 所设置下料部分实现自动加料,使藏料室内的物料始终保持在一个范围内的高度,以确保剂量的准确性。

5、采用进口电脑、电器元件及轴承,使控制及传动系统的性能稳定,技术可靠。

6、凭多年制造的技术经验,计量盘的每组模孔两端下料无死角 提高了剂量的准确性。

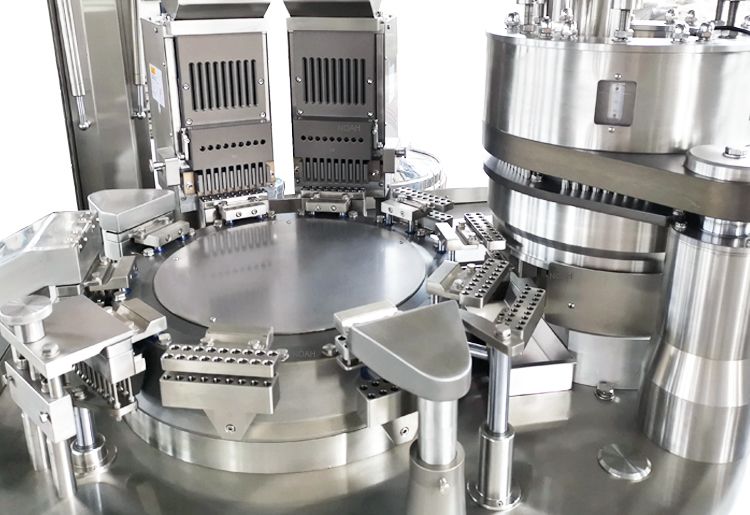

NJP2000/2500/3800自动胶囊充填机是广泛应用于制药、医药和化工行业的多功能设备。它可处理各种材料,适用于多个行业。该机器具有用户友好的控制面板、精确的胶囊定位和可拆卸的粉末料斗,便于清洁和调整。它提供灵活的速度和长度调节、快速更换零件设置和高效维护。全封闭配料站和大型凸轮机构确保胶囊灌装的无缝集成和高精度。

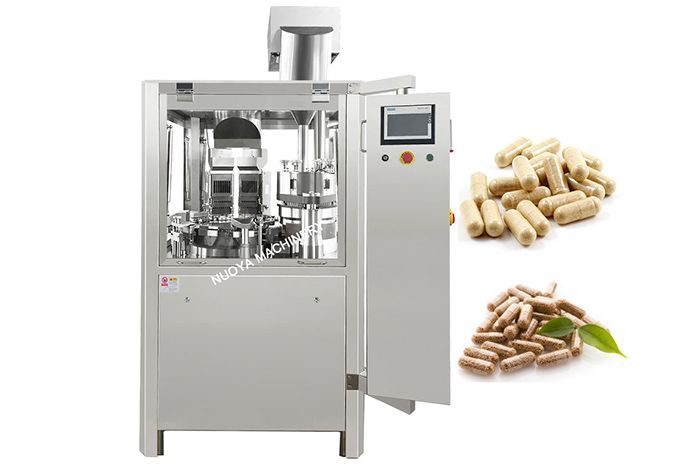

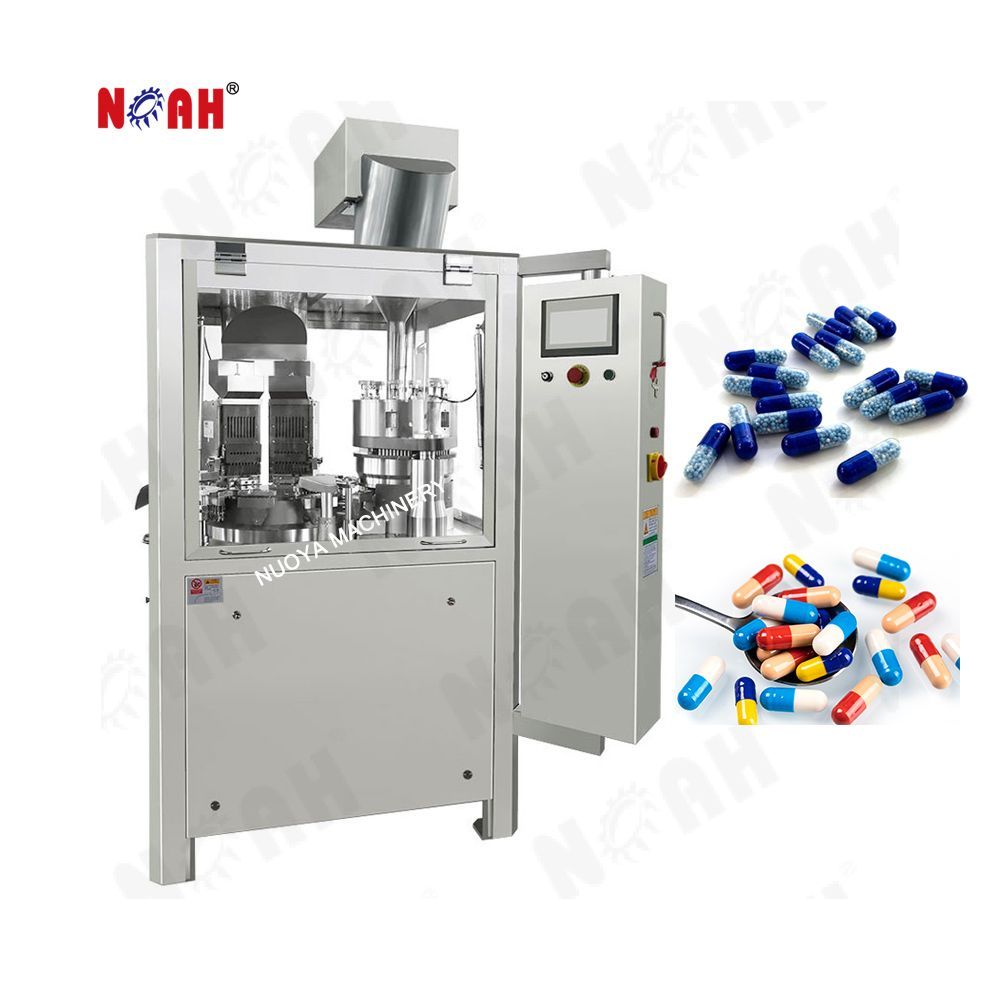

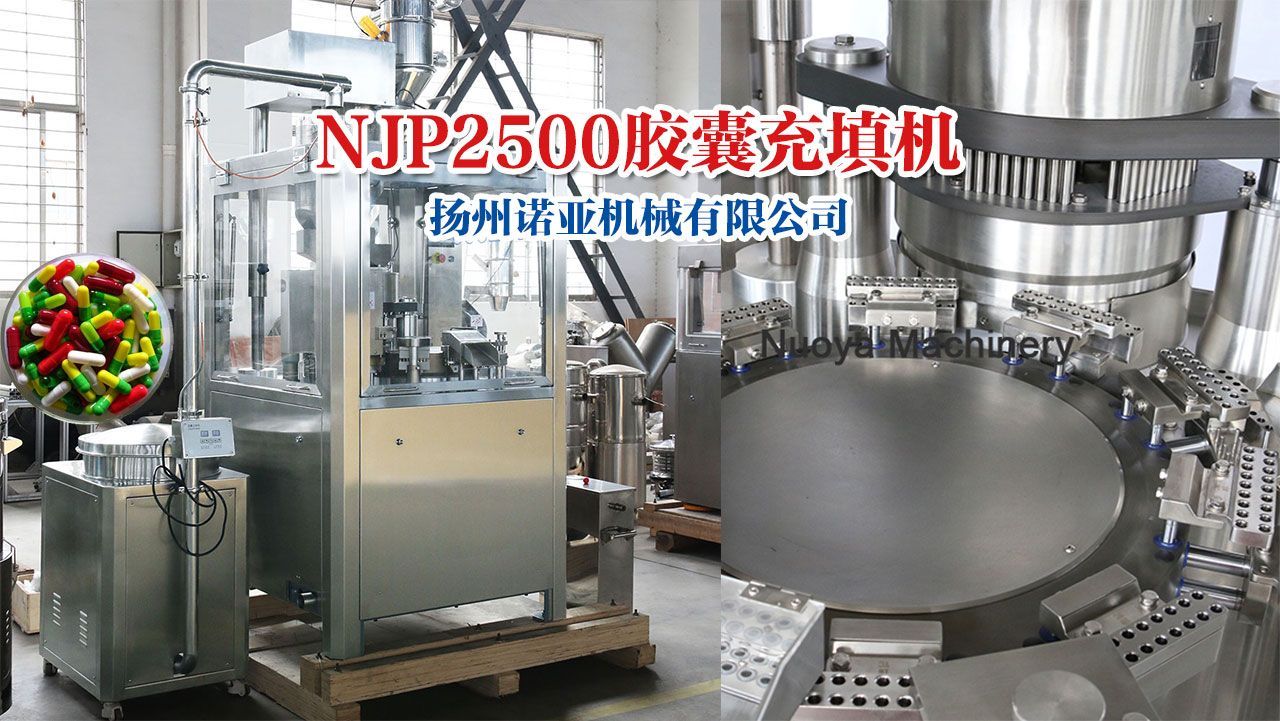

NJP2500型全自动胶囊充填机

Automatic powder capsule filling machine

成品展示

powder capsule

参数

型号ModelNJP-2000NJP-2500NJP-3800
产量Max.Output(pcs/h)120000150000228000
胶囊尺寸Capsule SizeSuitable for filling capsule size 00#-5#
Supro/safefy capsule size:A-E
(need to exchange the spare parts/moulds accordingly)
胶囊型号Dosage TypePowder/Pellet/Tablet
电源Power Supply8KW9.5KW11KW
噪音Noise IndexLess than 75dBA
尺寸Machine Size(mm)1100*1300*18001100*1300*18001440*1300*2080
重量Net Weight(kg)130013502300



问题FAQ - Have any questions?

What is the production capacity of the NJP2000/2500/3800 Automatic Capsule Filling Machine?

The NJP2000/2500/3800 machine has a production capacity of filling up to 2000, 2500, or 3800 capsules per minute, depending on the model.

What capsule sizes can be filled using the NJP2000/2500/3800 machine?

The NJP2000/2500/3800 machine is designed to handle various capsule sizes, including 00, 0, 1, 2, 3, 4, and 5.

Is the NJP2000/2500/3800 machine compatible with both gelatin and vegetable capsules?

Yes, the NJP2000/2500/3800 machine is suitable for filling both gelatin and vegetable capsules.

What is the accuracy level of the filling process with the NJP2000/2500/3800 machine?

The NJP2000/2500/3800 machine provides high accuracy in capsule filling, with an error rate of less than 1%.

Does the NJP2000/2500/3800 machine have a rejection system for removing defective capsules?

Yes, the NJP2000/2500/3800 machine is equipped with a rejection system to automatically remove defective capsules during the filling process.

Can the NJP2000/2500/3800 machine handle both powders and granules for capsule filling?

Yes, the NJP2000/2500/3800 machine can handle a variety of filling materials, including powders and granules.

What is the cleaning and maintenance procedure for the NJP2000/2500/3800 machine?

The NJP2000/2500/3800 machine is designed for easy cleaning and maintenance. It requires regular cleaning of contact parts and periodic lubrication of moving components as per the manufacturer's guidelines.

Does the NJP2000/2500/3800 machine come with a control system for monitoring and adjusting filling parameters?

Yes, the NJP2000/2500/3800 machine is equipped with an advanced control system that allows operators to monitor and adjust filling parameters such as dosage, speed, and capsule separation.

What safety features are included in the NJP2000/2500/3800 machine to ensure operator safety?

The NJP2000/2500/3800 machine is designed with safety features such as interlocks, emergency stop buttons, and error detection systems to ensure operator safety during operation.

Is technical support and training provided with the purchase of the NJP2000/2500/3800 machine?

Yes, technical support and training are typically provided by NOAH to ensure proper installation, operation, and maintenance of the NJP2000/2500/3800 machine.
